Name: GPON OLT 16 Pon Ports Bt-P8116h FTTH Network | BT-PON
Brand: BT-PON

BT-P8116H provides 16 GPON ports, 8GE copper RJ45 Ethernet ports and 4*GE(SFP)/4*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.

BT-P8116H integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.

Independent 1U chassis equipment with 16 PON ports, each port supports up to 128 ONUs, the whole device supports up to 2048 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.

16pon port gpon olt GPON EPON FTTH Solution

1U 19 inch standard box GPON OLT with 16 PON ports
Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
L3 function, support static route, RIP v1/v2, OSFP v2, ARP proxy
Tcont DBA, Gemport traffic
QoS based on port, VID, TOS and MAC address
Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
Support IGMP snooping, 256 IP Multicast Groups, IGMP Proxy
Support 802.1D and 802.1W
Support static LACP
Specialized design for system breakdown prevention to maintain stable system
Support port-based rate limitation and bandwidth control
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/link detection/remote upgrade of software
Support ONT automatically discovery, auto configuration
Support ONT firmware can be auto upgraded, download ONT firmware to OLT from web/tftp/ftp

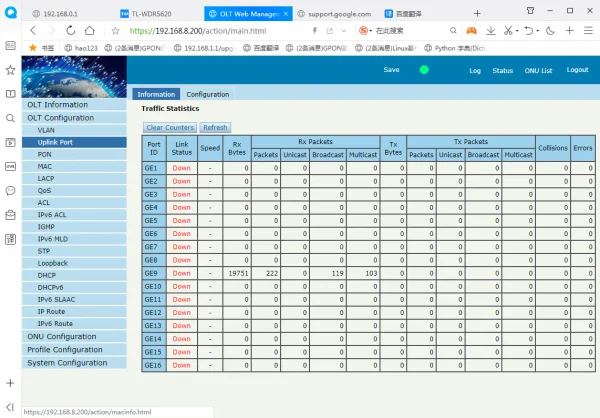

Support SNMP, telnet, CLI, OMCI/OAM and Web management
Support ACL and SNMP to configure data packet filter flexibly
Support broadcasting storm resistance function
Firewall function
Support remote software upgrade
Two power supply redundancy design to improve reliability
Support power-off alarm function,easy for link problem detection
Support for Industrial Temperature

Items	Unit	Specifications
PON standard.		GPON ITU-T G.984.x
PON interface	Qty.	16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +1 ~ +5dBmTransmission distance: 20KM. Max splitting ratio1:128
	Speed	Upstream 2.488G
		Downstream 1.244G
Wavelength	nm	Tx1310, Rx 1490
Uplink	GE	8*copper Ethernet ports 10/100/1000M auto-negotiation
	SFP GE	4GE(SFP)/ 410GE (SFP+) auto-detection
	SFP 10GE
Layer 3		Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports		110/100BASE-T out-band port, 1CONSOLE port
Management Mode		SNMP, Telnet, CLI, WEB
VLAN		Tag / Un-tag，VLAN transmission，QinQ
Operating condition	℃	Operating temp: -5 ~ +55
Storing condition	℃	Storing temp: -40 ~ +85
Humidity	%	5~90(non-condensing)
Power consumption	W	≤85
Dimension	mm	442×320×44（L×W×H）
Net weight	Kg	4.5

PON standard		GPON ITU-T G.984.x
PON interface	Qty
	Speed	16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power, Transmitting optical power: +1 ~ +5dBm Transmission distance: 20KM. Max splitting ratio1:128
		Upstream 2.488G Downstream 1.244G
Wavelength	nm	Tx1310, Rx 1490
Uplink	GE	8*copper Ethernet ports 10/100/1000M auto-negotiation
	SFP GE SFP 10GE	4GE(SFP)/ 410GE (SFP+) auto-detection
Layer 3		Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports		110/100BASE-T out-band port, 1CONSOLE port
Management Mode		SNMP, Telnet, CLI, WEB
VLAN		Tag / Un-tag，VLAN transmission，QinQ
Operating condition	℃	Operating temp: -5 ~ +55
Storing condition	℃	Storing temp: -40 ~ +85
Humidity	%	5~90(non-condensing)
Power consumption	W	≤85
Dimension	mm	442×320×44（L×W×H）
Net weight	Kg	4.5
