(New)16 Port GPON OLT BT-P8116H

16Pon Ports GPON OLT

♦ 4K VLAN entries,Port-based QinQ and Selective QinQ (StackVLAN)
♦ Port-based/MAC-based/IP subnet-based VLA
♦ IEEE 802.1x STP/RSTP/MSTP
♦ ONU remote loop detection
♦ MAC Black Hole,Port MAC limit,64K MAC address
♦ Bi-direction bandwidth control,Port mirroring and traffic mirroring
♦ IGMPv1/v2/v3,IGMP Snooping/Proxy,IGMP filtering
♦ RIP,OSPF,OSPF
♦ Command-line interface(CLI), Console, Telnet and WEB configuration
♦ RMON (Remote Monitoring)1/2/3/9 groups of MIB
♦ System configuration with SNMPv1/v2/v3
♦ NTP(Network Time Protocol)
♦ NMS2000 network management

BT-P8116H OLT is self-developed Compact 1U GPON OLT equipment,meeting the requirements of ITU-TG.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. BT-P8116H can be used with NMS2000 network management system so as to provide users with the perfect solution.

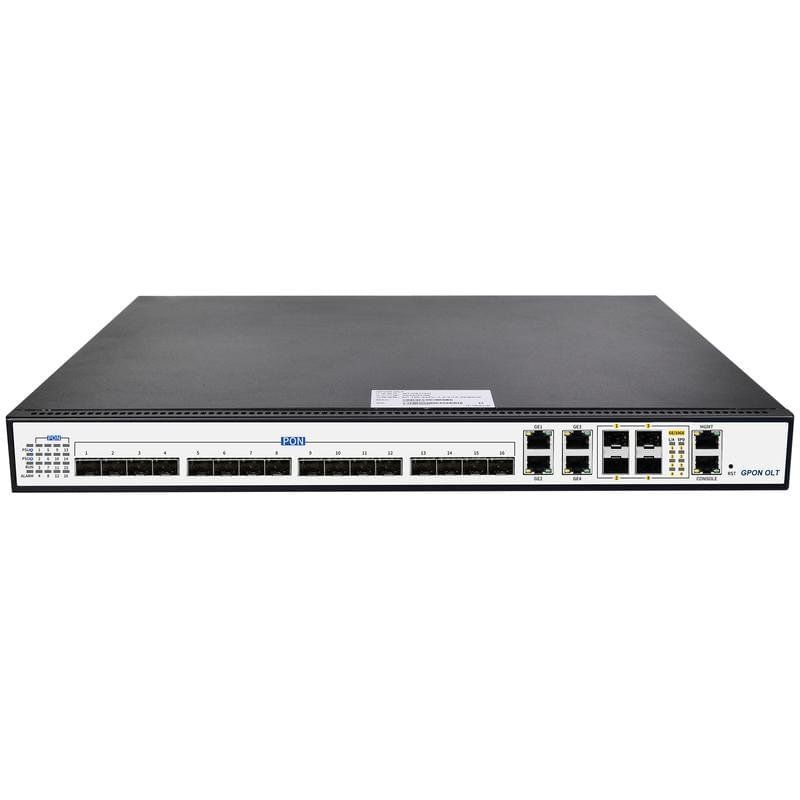

BT-P8116H OLT provides 16 *Downsteam GPON ports, 4 * Uplink GE ETH ports and 4* Uplink 10G SFP+ ports. Up to 1:128 Split ratio for up to 2048 GPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. BT-P8116H is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

Product Specifications
Network interface
GPON interface16 x GPON (2.5/1.25 Gbps)
10GE Ethernet4 x 10GE SFP+
1GE Ethernet4 x RJ-45
PON interface
GPONITU-TG.984.x standard
Local Management interface
ConsoleRJ-45 EIA/TIA-232 Console management port
MGMT1000BASE-T out-band management port
Performance
Switching Capacity148Gbps
Split ratio1:128
Maximum ONU quantity4096 GEM port-ids, 1024 T-CONT, 128 ONT
Power Supply and Consumption
Power AdaptorAC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V

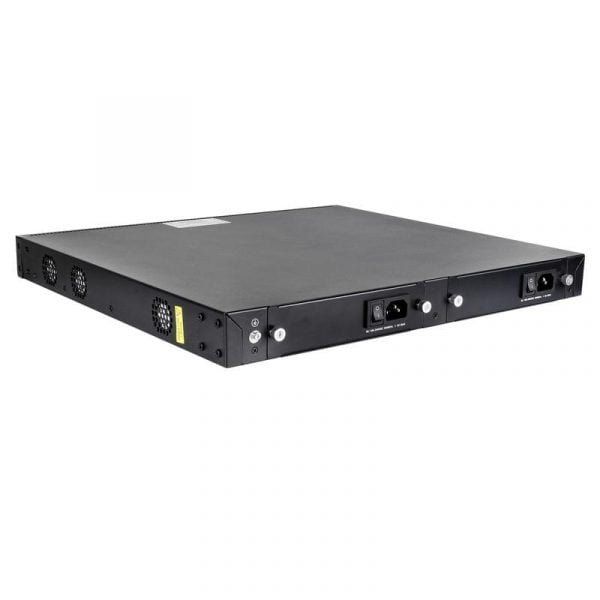

Redundancy DesignPluggable double power supply, double AC, double DC and AC+DC
Consumption<84 W
Environmental conditions
Storagetemperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operationtemperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Physical specifications
Dimensions440mm×362mm× 44mm(W * D *H)
Weight< 6.5KG
Ethernet switching (L2) features
VLAN4K VLAN entries
Port-based QinQ and Selective QinQ (StackVLAN)
Port-based/MAC-based/IP subnet-based VLA
Spanning treeIEEE 802.1x STP/RSTP/MSTP
ONU remote loop detection
MACMAC Black Hole
Port MAC limit
64K MAC address
PortBi-direction bandwidth control
Port mirroring and traffic mirroring
Service features
MulticastIGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering
QoSBase on port or user-defined rate limitation
Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
Base on port or user-defined high grade queue scheduling
Priority queues and scheduler of SP, WRR and SP+WRR
Congestion avoidance system
RoutingBGP/MPLS/RIP
Security features
User securityAnti-ARP-spoofing deceive defend
Anti-ARP-flooding flooding attack automatic control
IP,MAC,port and VLAN binding
Port isolation
Device securityDefend DOS attack
Security IP login through Telnet
Hierarchical management and password protection of users
Network securityIP address、VLAN ID、MAC address and port manual binding
Port broadcast /multi broadcast restrain
Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination
IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and
flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow
filtrate
Dynamic ARP table-based binding
DHCP Option82 and PPPoE+ upload user’s physical location
Network managementCommand-line interface(CLI), Console, Telnet and WEB configuration
RMON (Remote Monitoring)1/2/3/9 groups of MIB
System configuration with SNMPv1/v2/v3
NTP(Network Time Protocol)
NMS2000 network management
