(NEW) 8 ports EPON OLT BT-P6108H

8 ports EPON OLT

♦ Compatible with OLT Huawei/ ZTE/Fiberhome
♦ 4K VLAN entries/Port-based QinQ and Selective QinQ (StackVLAN)/Port-based/MAC-based/IP subnet-based VLA
♦ MAC Black Hole/Port MAC limit/8K MAC address
♦ Port:Bi-direction bandwidth control/Port mirroring and traffic mirroring
♦ IGMPv1/v2/v3、IGMP Snooping/Proxy、IGMP filtering
♦ Command-line interface(CLI), Console, Telnet and WEB configuration
♦ RMON (Remote Monitoring)1/2/3/9 groups of MIB
♦ System configuration with SNMPv1/v2/v3
♦ NTP(Network Time Protocol)
♦ NMS2000 network management

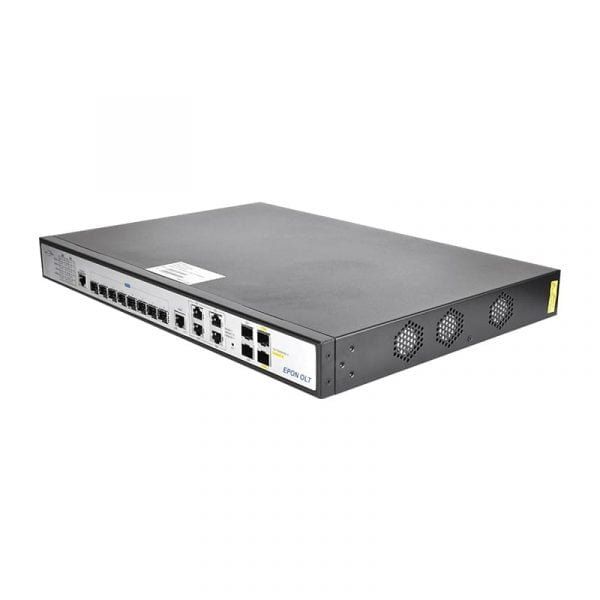

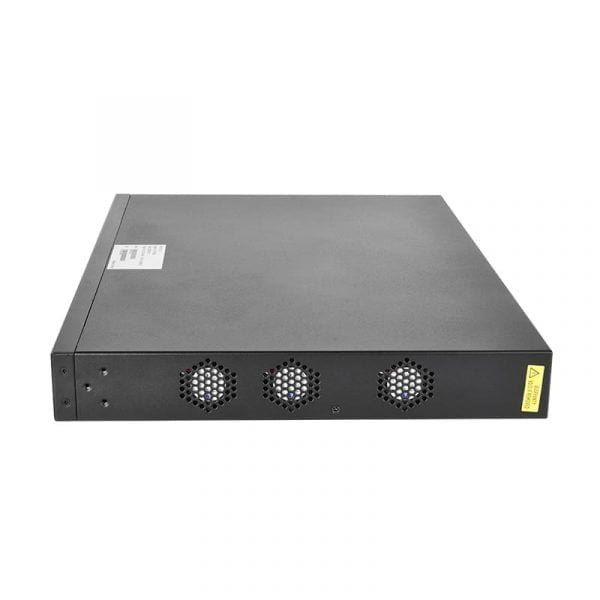

BT-P6108H OLT (8 ports EPON OLT BT-P6108H) is self-developed Compact 1U EPON OLT equipment,meeting the requirements of IEEE802.3ah and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0, possessing super EPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. BT-P6108H can be used with NMS2000 network management system so as to provide users with the perfect solution.

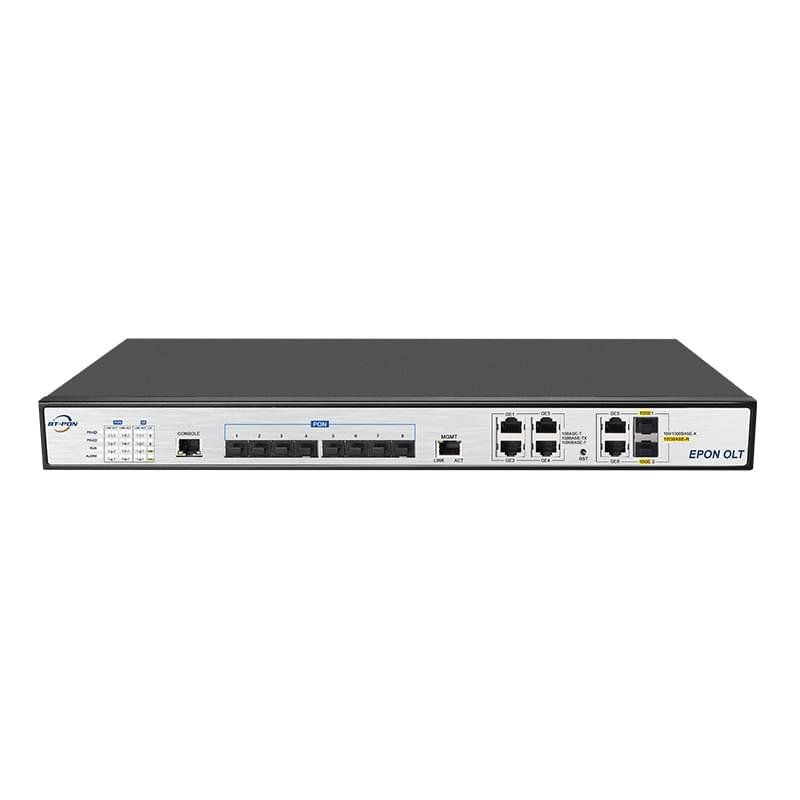

BT-P6108H OLT provides 8 *Downsteam EPON ports, 4 * Uplink GE ETH ports, 2 * Uplink GE SFP ports and 2* Uplink SFP+ ports. Up to 1:64 Split ratio for up to 512 EPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. BT-P6108H is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

Network interface
EPON interface8 x EPON (1.25/1.25 Gbps
Uplink Optical Interface4 x GE SFP + 4 x 10GE SFP+
Uplink Ethernet Interface4 x RJ-45
PON interface
EPONIEEE 802.3ah EPON
Local Management interface
ConsoleRJ-45 EIA/TIA-232 Console management port
MGMT1000BASE-T out-band management port
Performance
Switching Capacity116Gbps
Split ratio1: 64
Maximum ONU quantity512 ONT
Power Supply and Consumption
Power AdaptorAC Input: 100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy DesignPluggable double power supply, double AC, double DC and AC+DC
Consumption<56 W
Environmental conditions
Storagetemperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operationtemperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Physical specifications
Dimensions442mm×310mm× 44mm(W * D *H)
Weight5KG
Ethernet switching (L2) features
VLAN4K VLAN entries
Port-based QinQ and Selective QinQ (StackVLAN)
Port-based/MAC-based/IP subnet-based VLA
Spanning treeIEEE 802.1x STP/RSTP/MSTP
ONU remote loop detection
MACMAC Black Hole
Port MAC limit
8K MAC address
PortBi-direction bandwidth control
Port mirroring and traffic mirroring
Service features
MulticastIGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering
QoSBase on port or user-defined rate limitation
Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
Base on port or user-defined high grade queue scheduling
priority queues and scheduler of SP, WRR and SP+WRR.
Congestion avoidance system
Security features
User securityAnti-ARP-spoofing deceive defend
Anti-ARP-flooding flooding attack automatic control
IP,MAC,port and VLAN binding
Port isolation
Device securityDefend DOS attack
Security IP login through Telnet
Hierarchical management and password protection of users
Network securityIP address、VLAN ID、MAC address and port manual binding
Port broadcast /multibroadcast restrain
Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination
IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and
flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow
filtrate
Dynamic ARP table-based binding
DHCP Option82 and PPPoE+ upload user’s physical location
Network managementCommand-line interface(CLI), Console, Telnet and WEB configuration
RMON (Remote Monitoring)1/2/3/9 groups of MIB
System configuration with SNMPv1/v2/v3
NTP(Network Time Protocol)
NMS2000 network management
