BT-PON 1.25G SFP Module 1310nm 40KM

BT-PON GE-LSM40 1.25G SFP Module
  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • Up to 40km on 9/125μm SMF

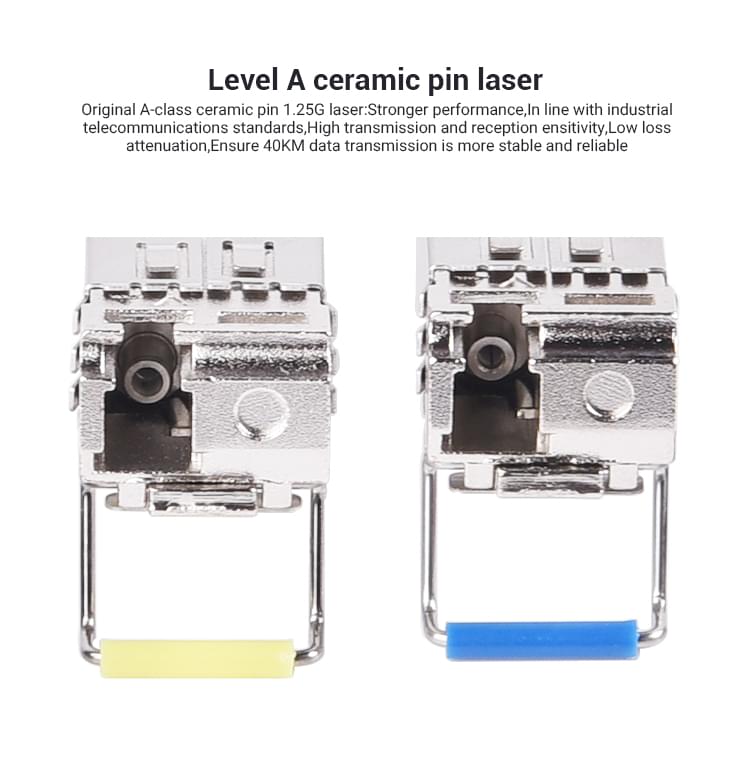

  • 1310nm FP laser transmitter
  • Single +3.3V Power Supply

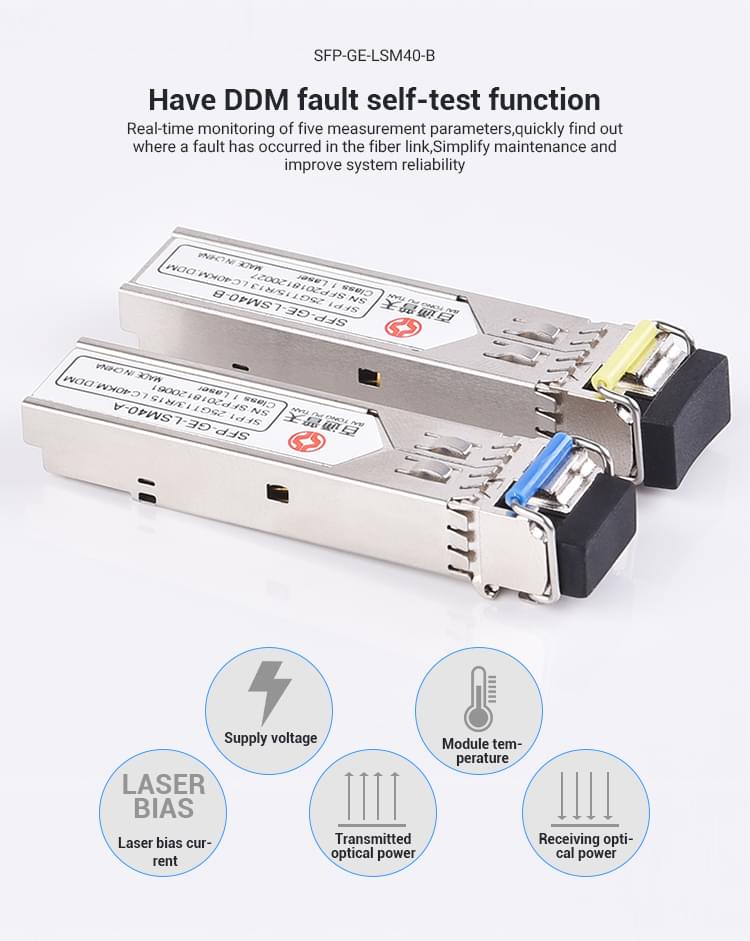

  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W

Description

BT-PON GE-LSM40 SFP Module is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 40km application.

1.25G SFP Module Dual Fiber Optical Transceiver 1310nm 40KM 3.3V GE-LSM40
Material
Metal
Color
Silver
Data Rate
1.25Gbps
Weight
20g
Fiber Interface
LC (SC/ST/FC optional)
Fiber Type
Dual fiber
Transmission Distance40KM
Wavelength
1310nm
Voltage
3.3V

SFP Module GE-LSM40

SFP Module GE-LSM40

SFP Module GE-LSM40
