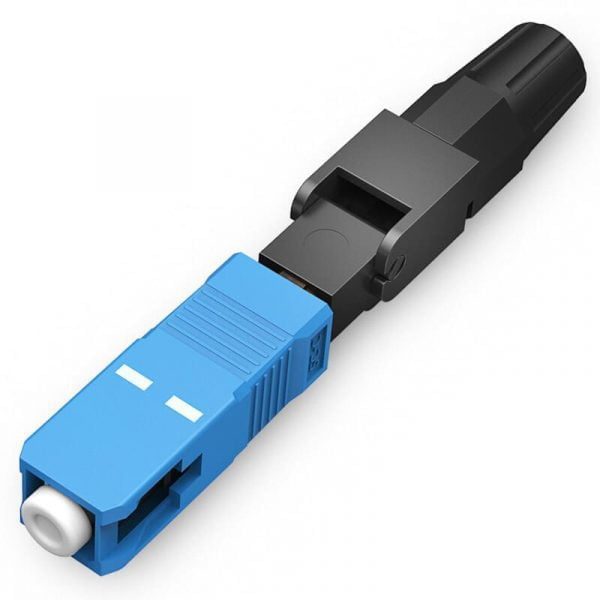

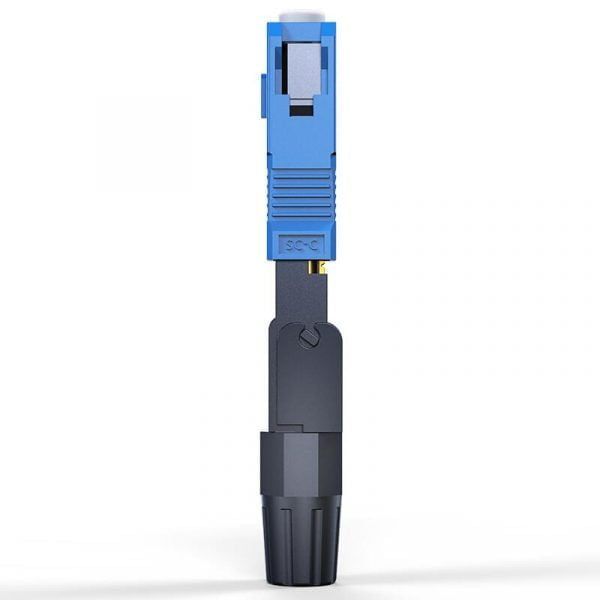

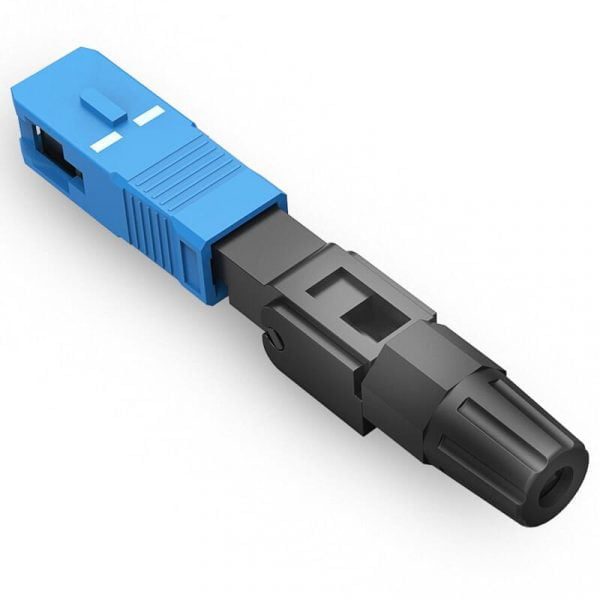

SC/UPC Fiber Optic Fast connector Quick Connector

Features:
◉Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
◉No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
◉Fiber aligned in v-groove through the ceramic ferrule
◉Low-volatile reliable matching liquid preserved by side cover
◉Unique bell-shaped boot maintains the mini fiber bend radius

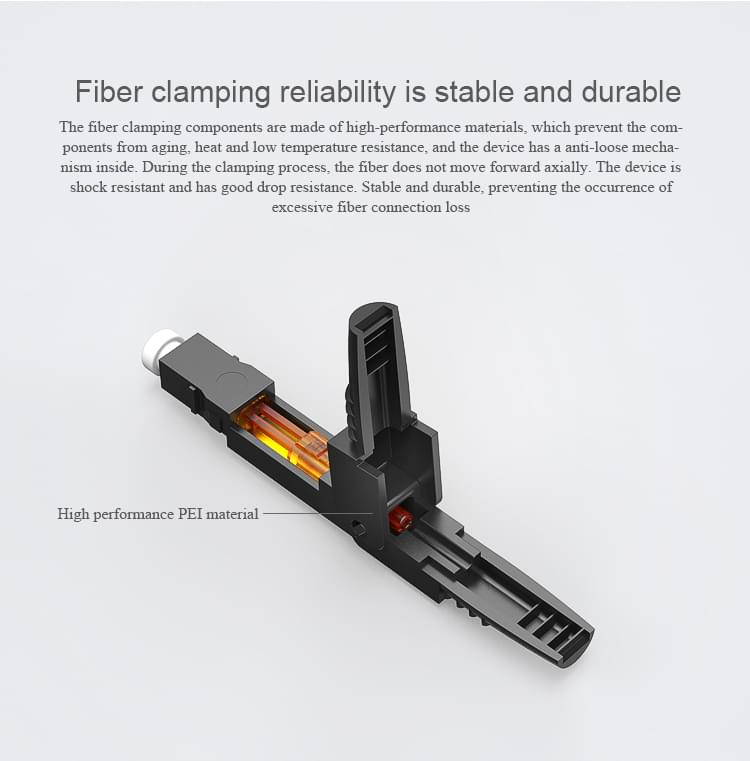

◉Precision mechanical alignment insures low insertion loss
◉Pre-installed, on-site assembly without end face grinding and consideration

Applications:
◉Used to open the FTTH fiber terminal end.
◉Fiber Optic Distribution Frame, Patch Panel, ONU
◉In the box, cabinet, such as wiring into the box.
◉Maintenance or emergency restoration of fiber network
◉The construction of the fiber end user access and maintenance.
◉Optical fiber access of mobile base station.
◉For FTTH Drop Cable field termination.
◉For emergency fiber path repair.
◉FTTH, LAN and other fiber optic system.

Description

Fiber Optic Fast connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.

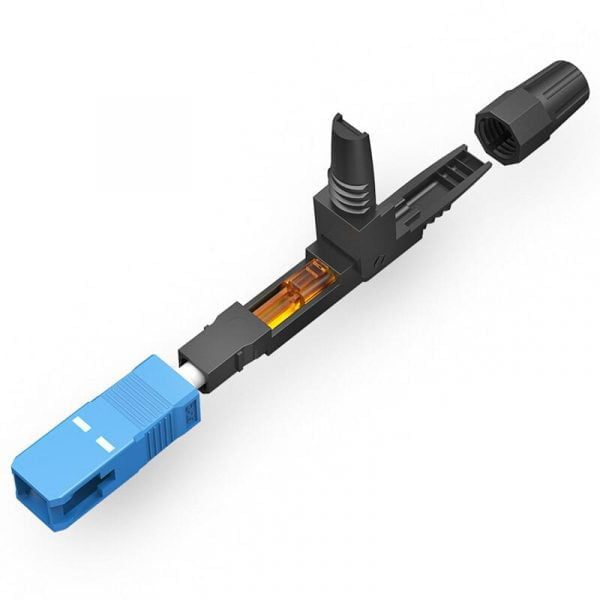

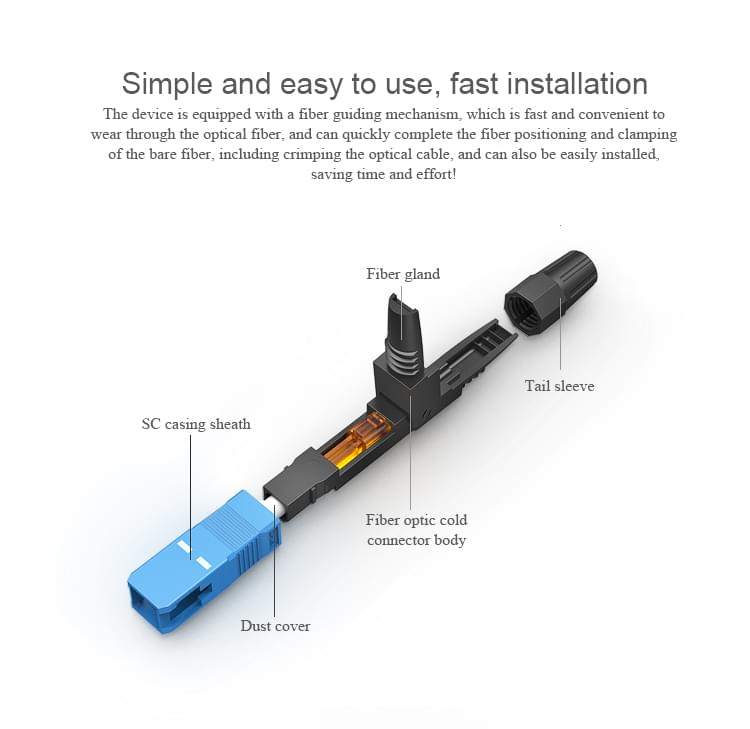

It is designed for high quality and high efficiency for installation, the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.

BT-PON SC/APC  fiber optic fast connector quick connector
ModeSM MM
PolishUPCAPCPC
Insertion LossTypical ≤0.2dB

Maximum ≤0.3dB
Typical ≤0.2dB

Maximum ≤0.3dB
≤0.25dBReturn Loss≥50dB≥65dB≥35dB
Interchangeability≤0.2dB
Repeatability≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh> 10kg
Temperature≤0.2dB (-40+85 sustain 100 hours)
Humidity≤0.2dB  (+25+65 93 R.H.100 hours)

SC/UPC Fiber Optic Fast connector Quick Connector

SC/UPC Fiber Optic Fast connector Quick Connector
