Optical Fiber Fusion Splicer BT-A600
BT-A600 Optical Fiber Fusion Splicer

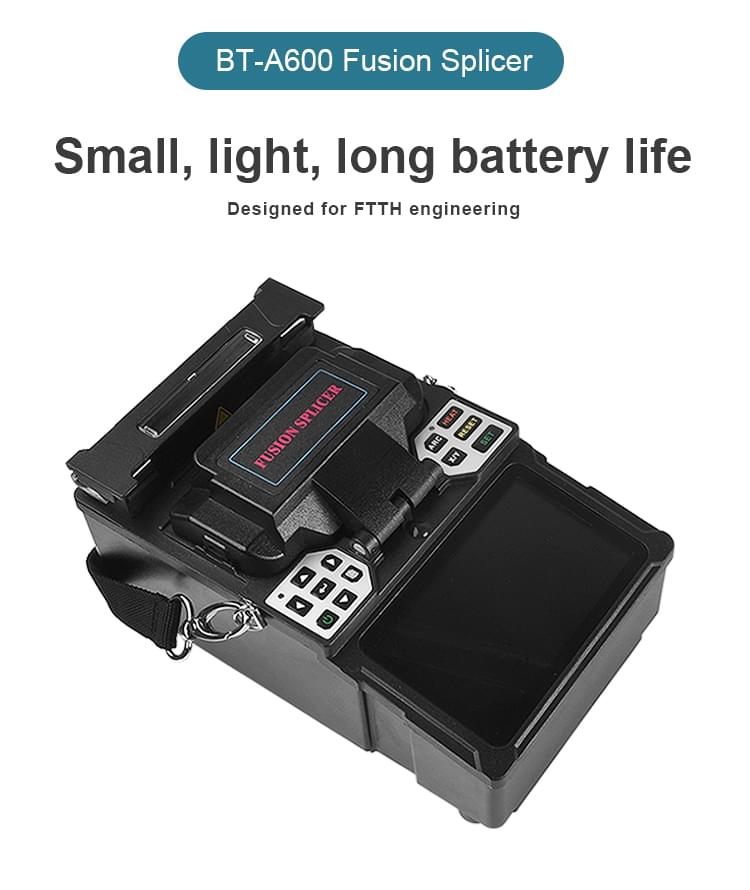

- Small,light,long battery life
- 4 motors accurate cladding alignment
- 250 times magnification of fiber cores

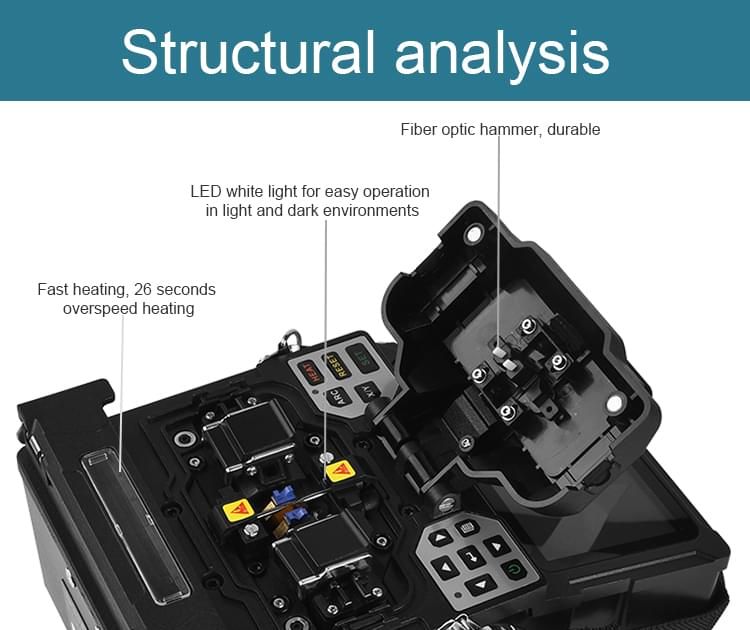

- 7s fast splicing, 26s intelligent heating
- More than 4000 times electrodes discharging
- 4400mAh Li-batery,220 cycels splicing and heating oInductive automatic heater ,not heating without fibers *3 in 1 multi-function clamps,new waterproof structure
- Apply to bare fibers,drop cables and jumper wires splicing
Description
BT-A600 Optical Fiber Fusion Splicer use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market.
Video Display: https://www.youtube.com/watch?v=DZTtwaGqgJo
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
|---|---|
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160 – 900μm |
| Typical splice loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB |
| Return loss | >60db |
| Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
| Splicing program | 40 groups |
| Operate mode | Manual, Automatic |
| Auto-heating | Available |
| Typical splicing time | 7 seconds |
| Tube heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing method and display | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Storage of splice result | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easier operation |
| Battery capacity | 4400mAh Li-battery, typical 220 cycles(splice and tube heat) |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminals | USB 2.0 port, for uploading splice results and upgrading software |
| Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s |
| Dimension | 200mm(L)x123mm(W)x95mm(H) |
| Weight | 1.6kg including battery |
| Package | Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.3kg |
