Multifunction OTDR Fiber Optic Pon Tester NK5600 1310 1550Nm

 OTDR NK5600

♦Less than 0.8m short-term event dead zone, test fiber jumper easily
♦Integrated 5.7-inch color TFT LCD display, key/touch dual operation
♦Built-in stable light source function 1310/1550nm
♦Built-in optical power meter test function
♦Built-in visible red fault location (VFL)
♦Has a unique test result self-diagnosis function
♦Independent and convenient one-button automatic operation mode, real-time test function buttons
♦Multi-wavelength synchronization test function
♦With multiple waveform viewing capabilities
♦Link-band non-destructive testing (online test module)
♦Communication light automatic monitoring function
♦With test file wireless transmission function
♦Battery low voltage alarm function
♦WinCE Windows operating system

Description

NK5600 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation;

Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous.

It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.

Multifunction OTDR Fiber Optic Pon Tester NK5600 1310 1550Nm
Product
Multi-Function Optical Time Domain Reflectometer (OTDR)
Model
NK5600
Fiber type
SMF
Display
5.8 inch color LCD with touch screen
size: 227 mm *160 mm *70mm
Wavelength(nm)
1310/1550
Maximum dynamic range(dB)
32/30
Event dead zone(m)
1
Attenuation dead zone(m)
6
Measuring range
500m /l km /2 km /4 km /8 km /16 km /32 km /64 km /128 km /256km
Measuring pulse width
5ns/ 10ns/ 5Ons/ 160ns/ 320ns/ 500ns/1000ns/ 5000ns/ 1000ns/ 2000ns
Ranging accuracy
± (0.75m+ Sampling interval +0.005% x Test distance)
Loss precision
±0.05dB
Reflection accuracy
±3dB
Data storage
≥2000
Interface type
FC/ PC (Replaceable SC, ST)
Communication interface
USB,mini-USB, 10M/100M Ethernet
VFL output
≥5mW

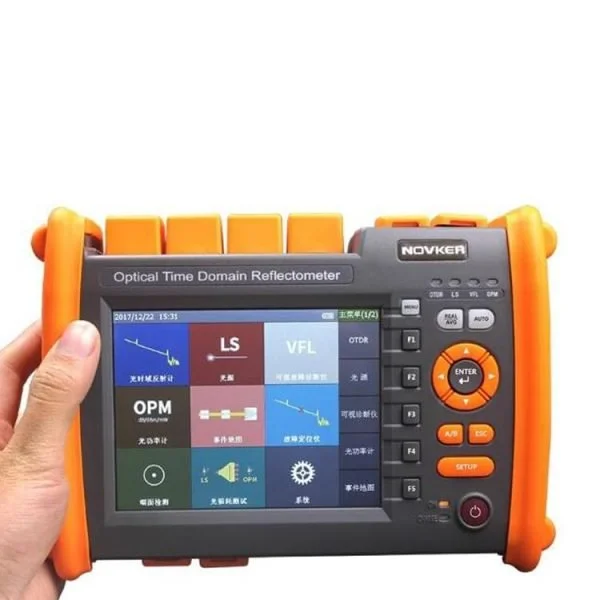

OTDR NK5600-1

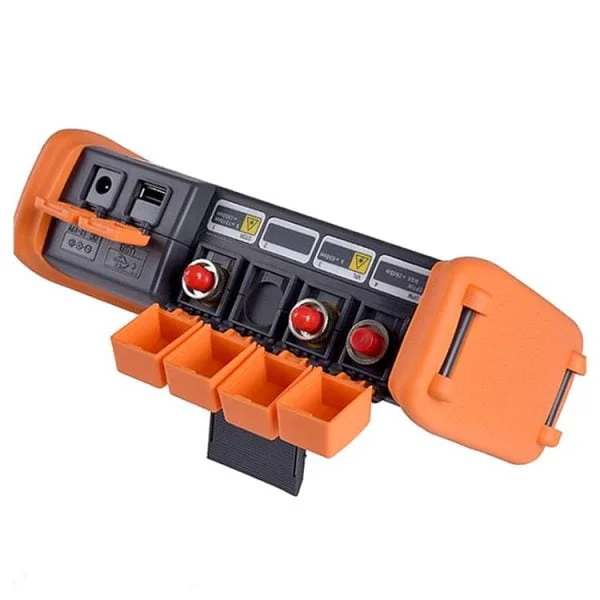

OTDR NK5600-3

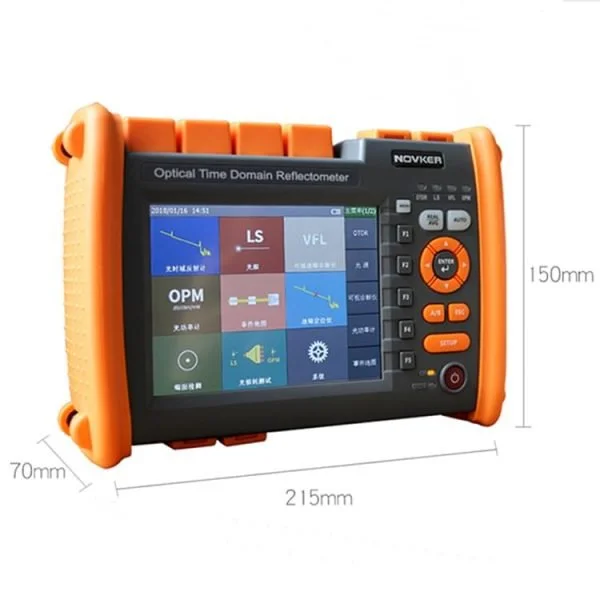

OTDR NK5600-4

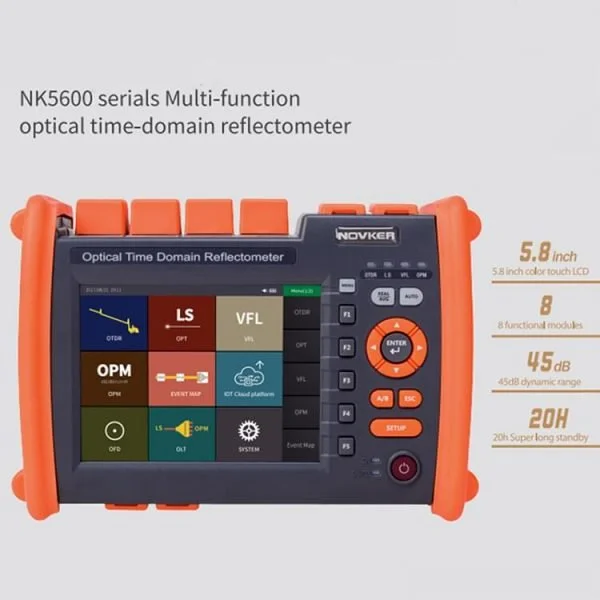

OTDR NK5600-5
