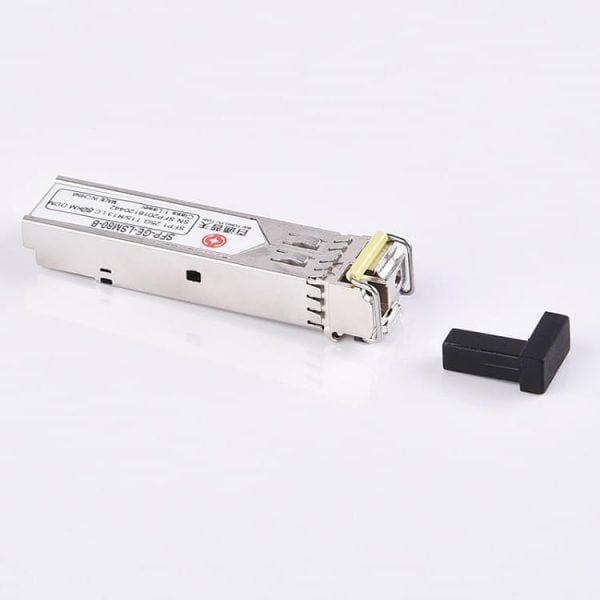

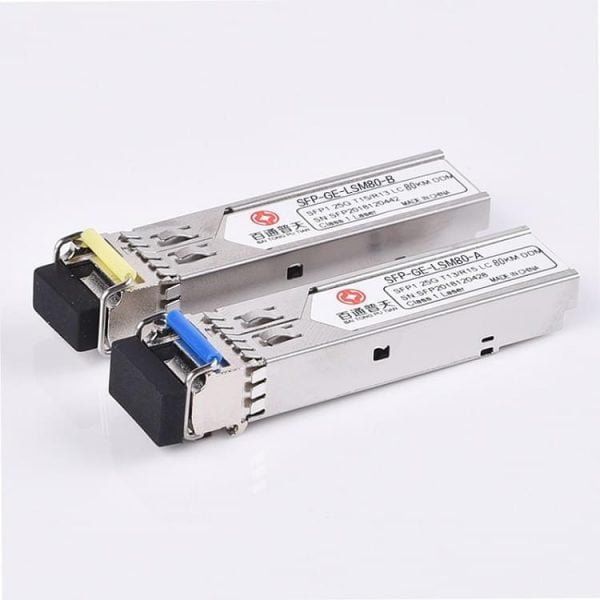

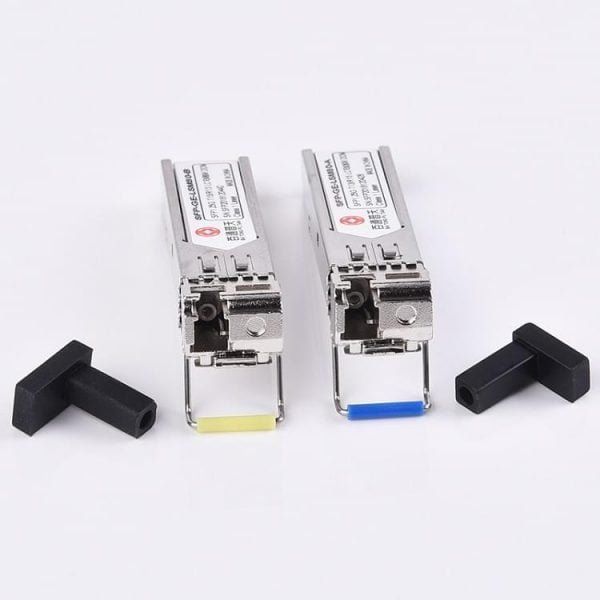

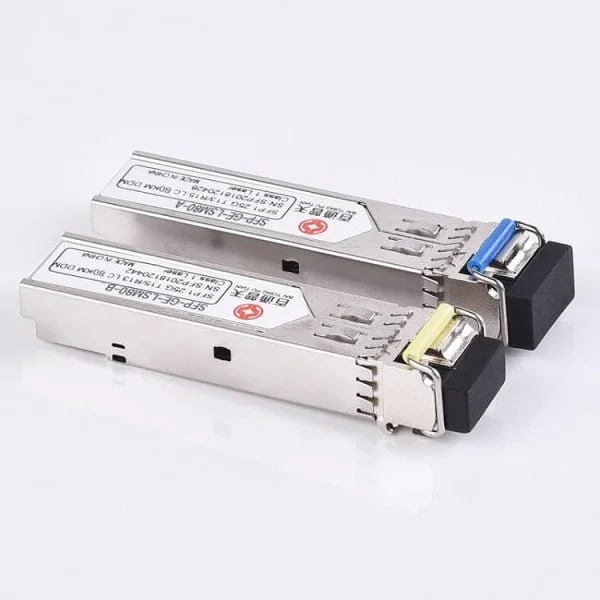

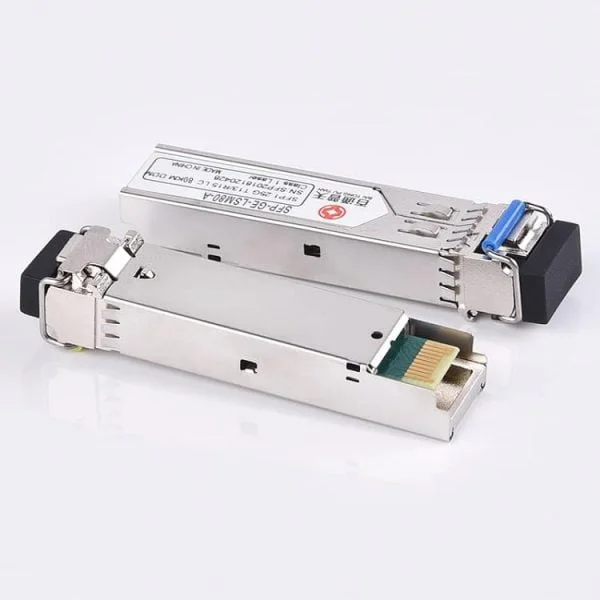

BT-PON GE SFP LC Single Fiber 80KM

GE SFP LSM80-B
  • Up to 80km transmission on SMF
  • Up to 1.25Gbps
  • 1310nm FP laser and PIN receiver
  • Single LC/SC receptacle optical interface compliant
  • 2-wire interface for integrated Digital Diagnostic monitoring
  • Hot pluggable
  • Very low EMI and excellent ESD protection
  • +3.3V power supply
  •  Power consumption less than 1.0W
  •  Operating case temperature: 0~+70°C

Description

BT-PON SFP-GE-LSM80-B SFP Module is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 80km application

GE SFP LC Optical Transceiver Single Fiber 80KM Optical Transceiver
Material
Metal
Color
Silver
Data Rate
1.25Gbps
Weight
20g
Fiber Interface
LC (SC/ST/FC optional)
Fiber Type
Single fiber
Transmission Distance80KM
Wavelength
1310nm
Voltage
3.3V

GE SFP LSM80-B

GE SFP LSM80-B

GE SFP LSM80-B
