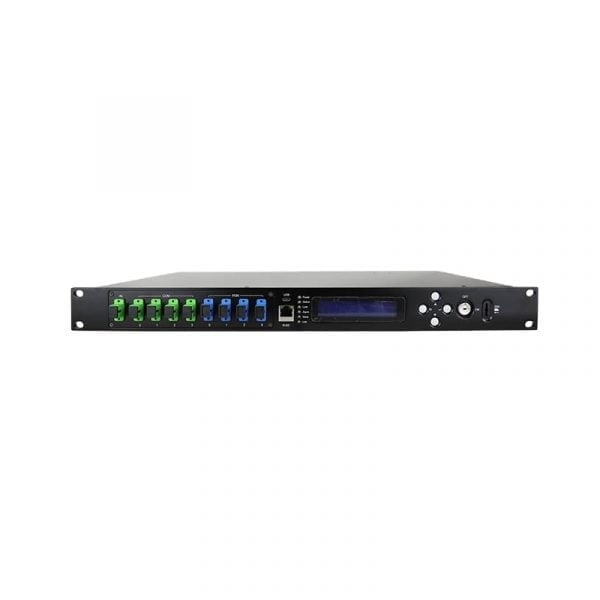

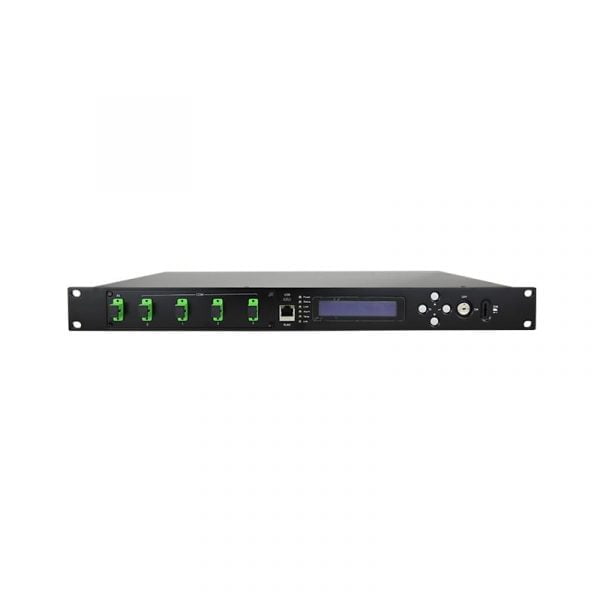

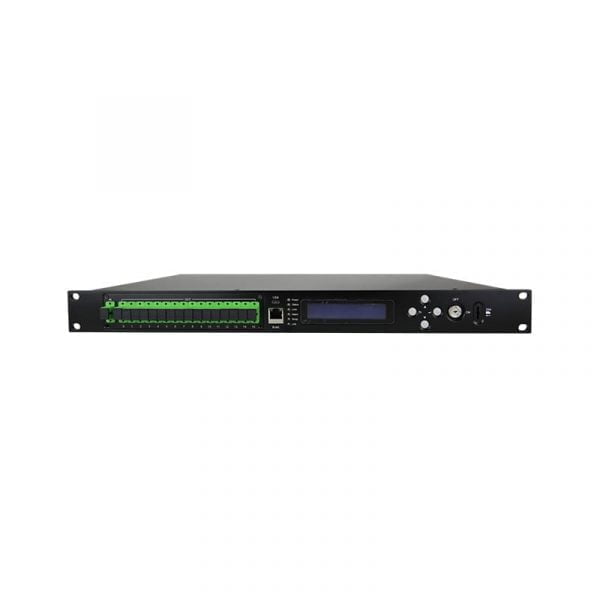

1550NM CATV EDFA 4 Ports With WDM

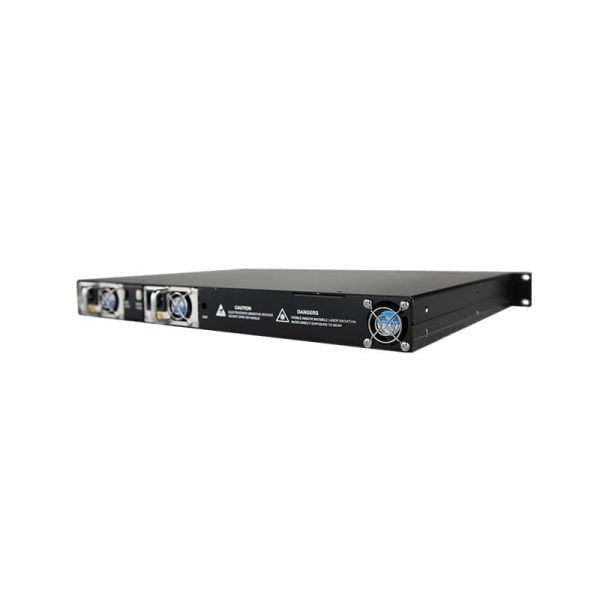

◉Double pump, double power supply
◉Standard 19 inch 1U Rack
◉1/2/4 output ports with or without WDM
◉Total output power range 13-26db
◉Wide input dynamic range(0 to +10dBm)

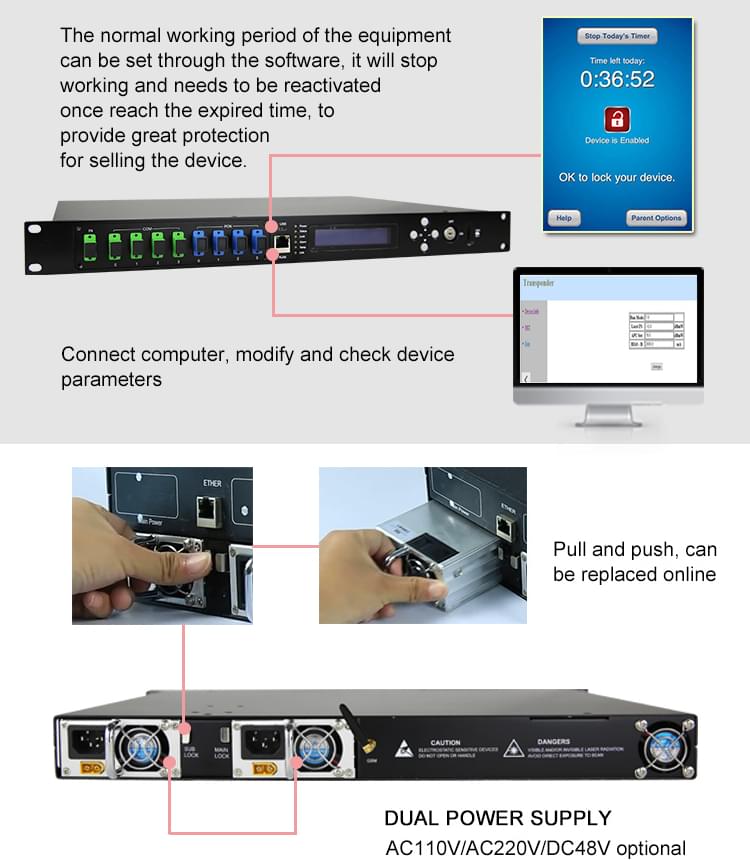

◉Web browser management
◉Automatic Power Control (APC) or Automatic Current Control (ACC)
◉LCD front panel display for local monitor

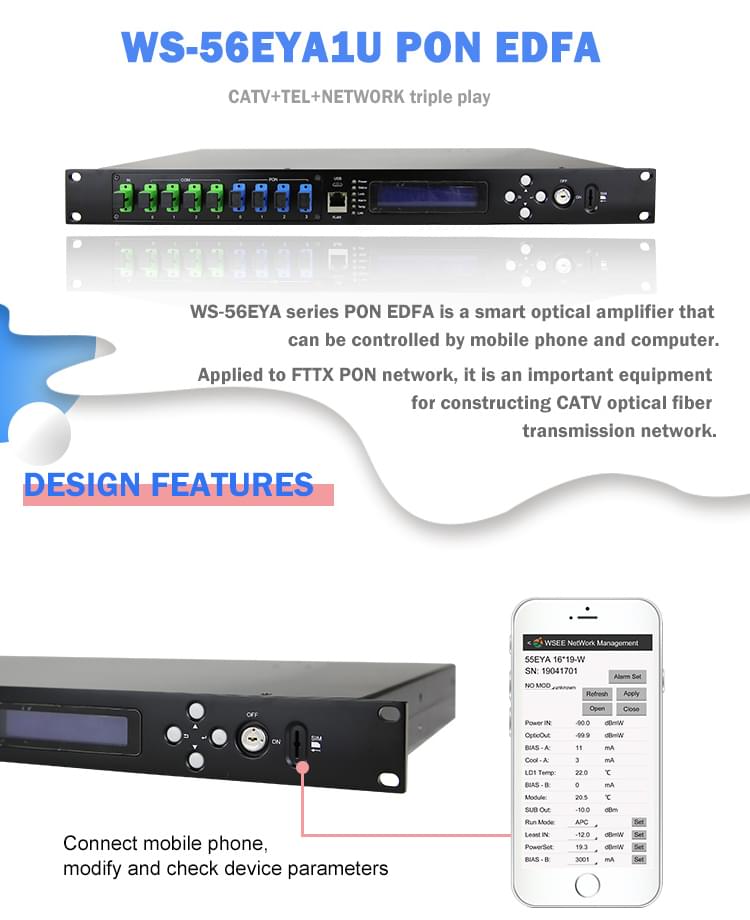

◉Remote management via SNMP (Ethernet Interface)

Description

High-power multi-port output fiber optical amplifier with a gain spectrum bandwidth of 1535~1565nm. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities. Can build CATV large Medium-sized optical fiber transmission network .

1550nm fiber amplifier EDFA are designed for using in CATV、FTTX and HFC application. It is optimized for 1550nm wavelength with 1U 19 inch rack housing. The product is flexible enough to perform all the requirements of CATV、FTTX and HFC applications. The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget.

Also provide monitors and associated alarms for all vital characteristics. The status and management of the device can be monitored and managed either from the LCD front panel display /Web or remotely via Ethernet based-SNMP NMS.It is an important equipment for building CATV large Medium-sized optical fiber transmission network.

1550NM CATV EDFA 4 Ports With WDM/Optical Fiber Amplifier
Technical ParametersWS-56EYA1U
Wavelength1535-1565nm
Input power range-5dBm~+10dBm(normal input -2dBm~+5dBm)
Output optical power26dBm~37dBm
Optical power stability±0.1dBm
Noise figure≤ 5.0dB(Pin=0dB)
Input return loss≥ 45dB
Output return loss≥ 45dB
C/N≥ 50dB
C/CTB≥ 63dB
C/CSO≥ 63dB
Optical connectorSC/APC;SC/PC;LC/APC;LC/PC
Supply voltageAC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 ~ 58V)
Consumption≤ 50w
Working temperature-5℃ ~+42℃
Storage temperature-30℃ ~ +70℃
Maximum working relativeMax 95% non-condensing
humidityMax 95% non-condensing
Package size(1pc)580(W)*485(L)*110(H)mm
Package size(2pcs)600(W)*515(L)*250(H)mm
Size380(W)*482(L)*44(H)mm
Weight6.5kg/pc
Fiber Amplifier 1550NM CATV EDFA 4 Ports With WDM

Fiber Amplifier 1550NM CATV EDFA 4 Ports With WDM

Fiber Amplifier 1550NM CATV EDFA 4 Ports With WDM
