BT-PON 1*64 LC-SC UPC Optical Fiber Ftth Box Splitter

1*64 SU-BOX PLC splitter

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength:
  • From 1260nm to 1650nm
  • Wide Operating Temperature:
  • High Reliability and Stability

Description

BT-PON supplies optical cassette type PLC splitters. Planar Lightwave Circuit splitter is called PLC splitter which is a type of optical power management device. The features of PLC splitter is with small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. And It is widely used in PON networks to realize optical signal power splitting.

BT-PON 1*64 LC-SC UPC optical fiber ftth box splitter plc pigtail splitter
Parameter UnitValue
Product Type1×2
Operation Wavelengthnm1260~1650
Insertion LossTyp.dB3.6
Max.dB4.3
Uniformity (Max.)dB0.5
PDL(Max.)dB0.2
TDL(Max.)dB0.5
Return LossdB≥55/50
DirectivitydB≥55
Operating Temperature℃ -40~85
Storage Temperature-40~85
Operating Humidity%RH≤93
Storage Humidity%RH≤93

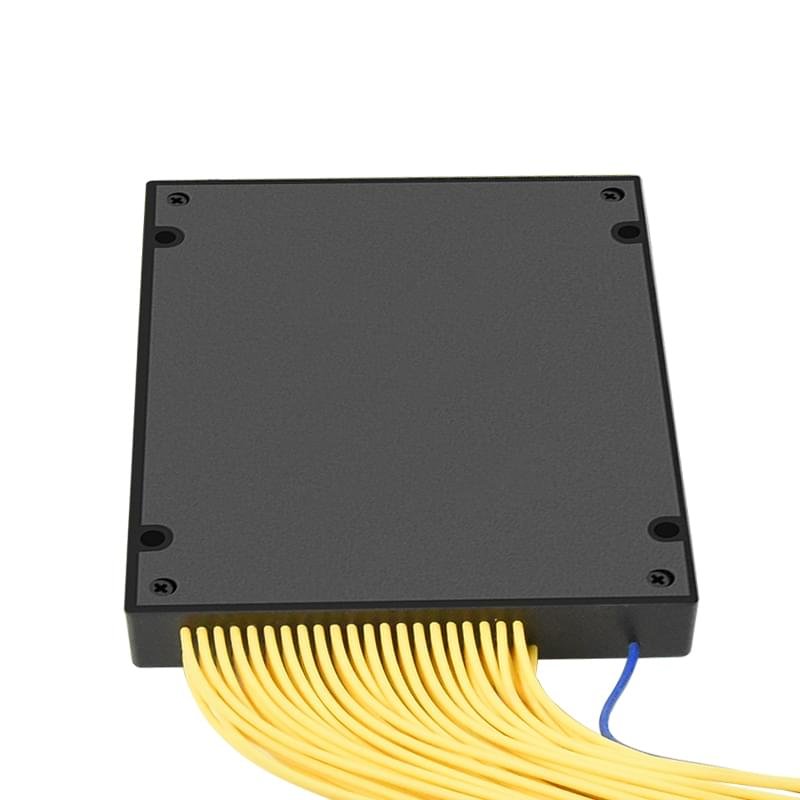

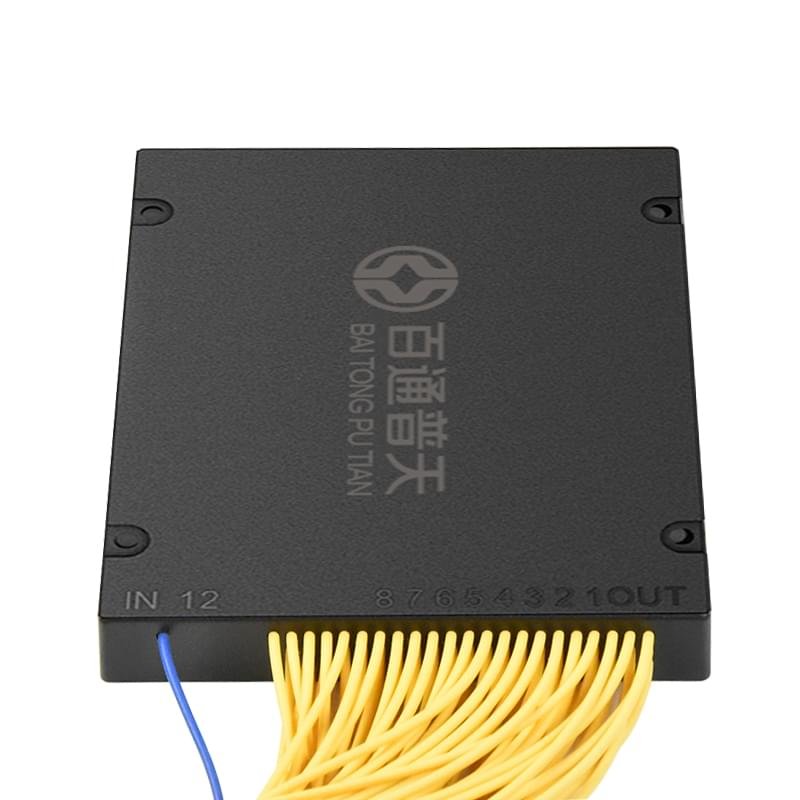

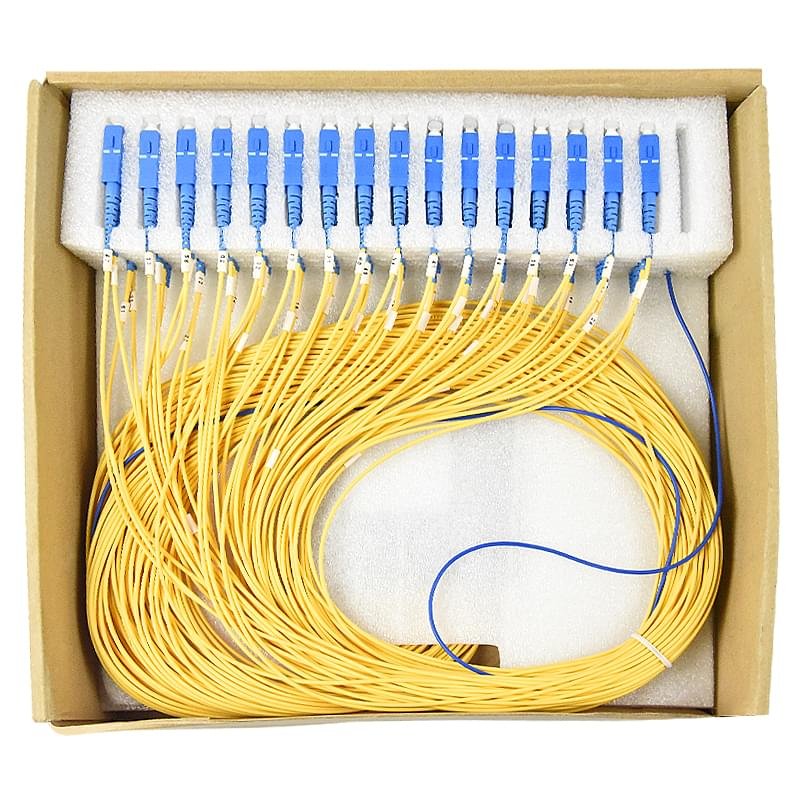

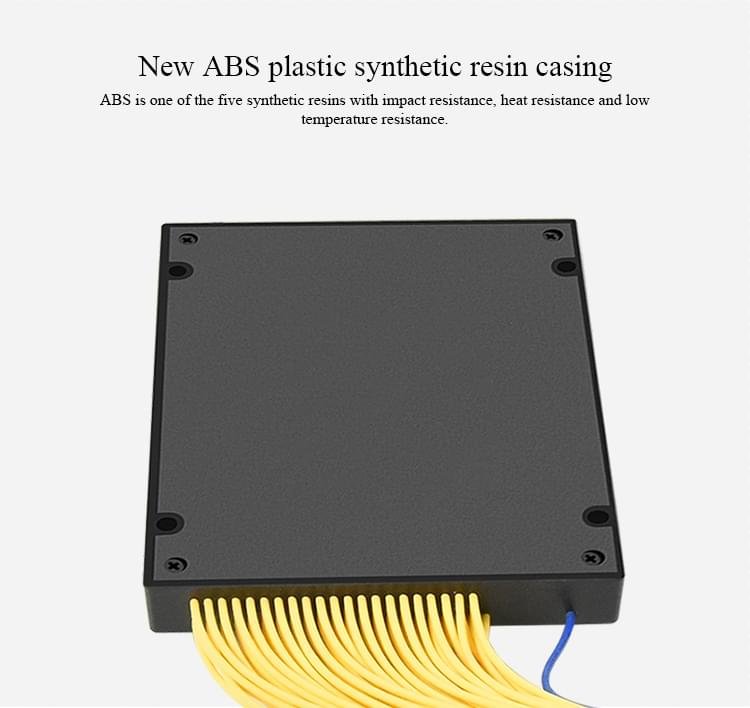

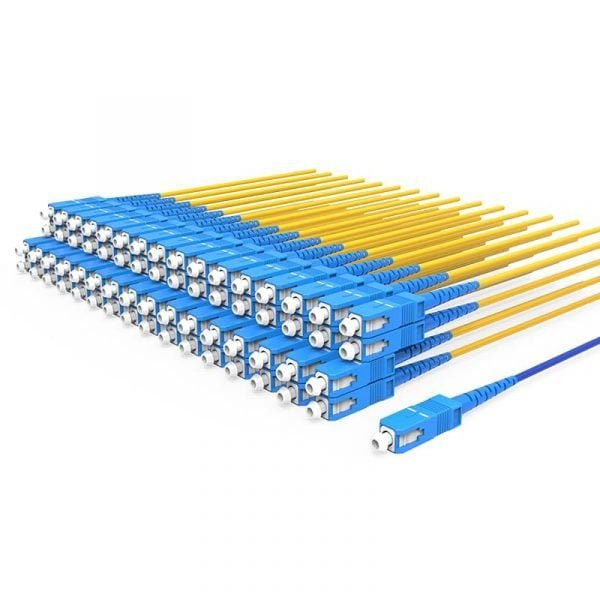

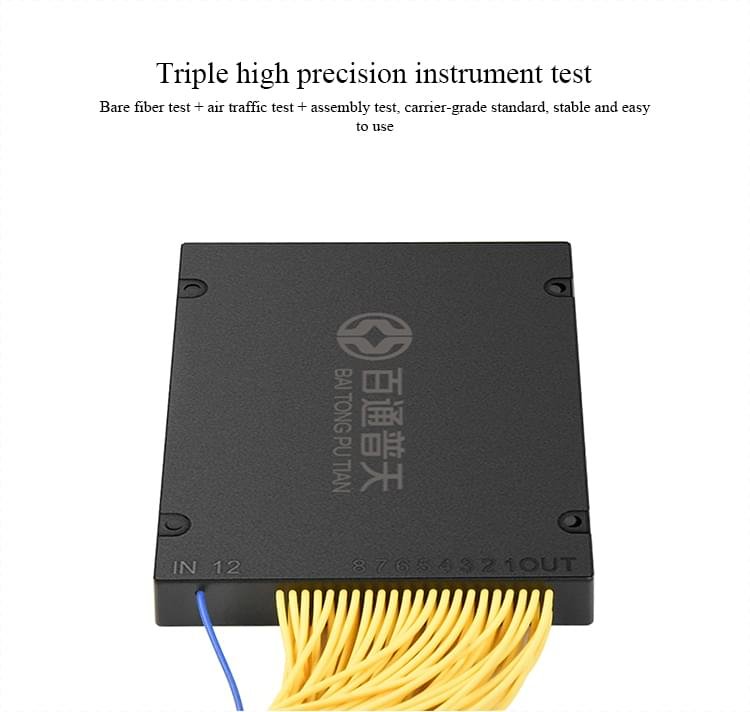

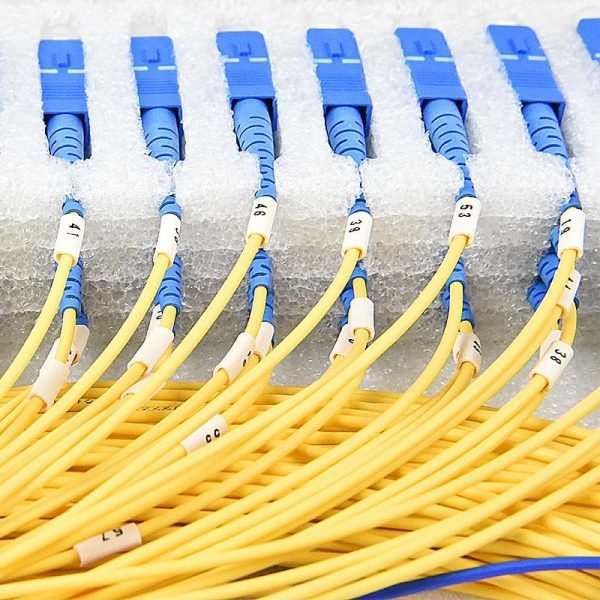

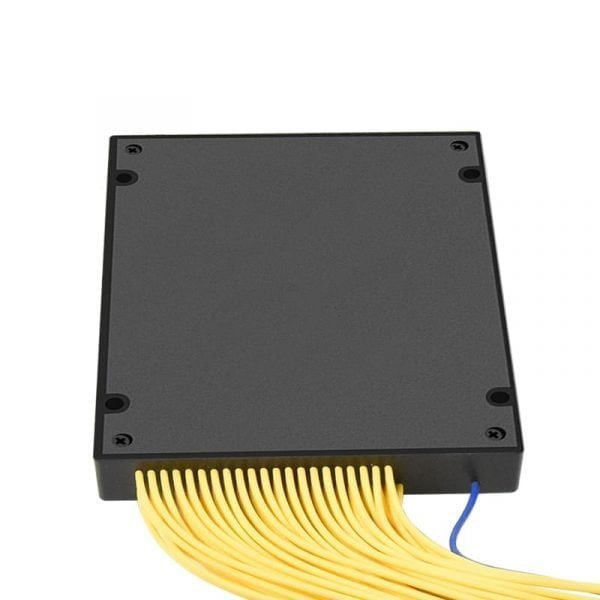

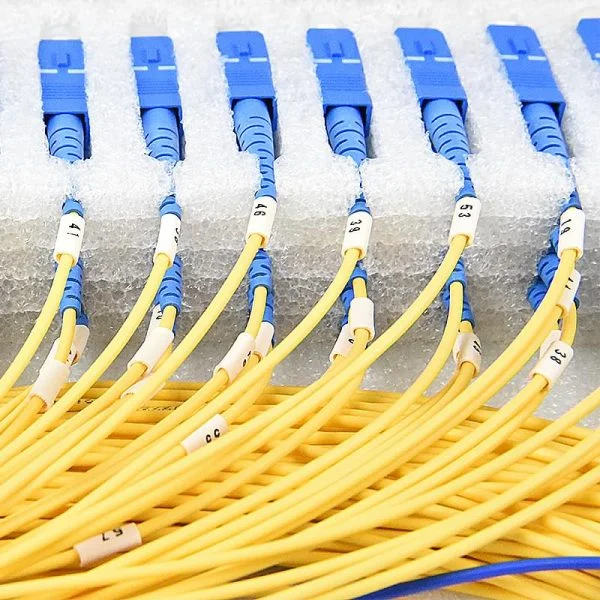

optical box splitter 1X64

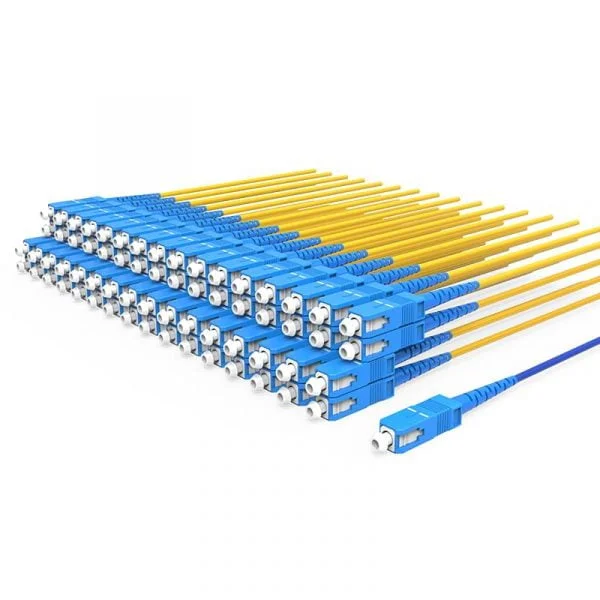

optical box splitter 1X64

optical box splitter 1X64

optical box splitter 1X64
