Automatic 6 Motors Fusion Splicer BT-A900

Fusion Splicer BT-A900

*6 motors accurate core to core alignment

*Automatic fiber type identification

*6s stable splicing & 16s fast heating

*Automatic & real-time ARC calibration

*Upgraded CPU with 30% power saving

*Real-time heating temperature monitoring

*Anti-shock, Anti-dust and waterproof

*Apply to bare fiber, patch cord,drop cable etc

Description

BT-A900 (Automatic BT-PON 6 Motors Fttx core alignment fusion splicer optical fiber Welding Soudeuse Fusion Splicing Machine.) is a new generation of fiber-optic welding machine with the latest core alignment technology, auto focus and eight motor. It is fully qualified for short-distance trunk, FTTH home, security monitoring and other fiber optic cable welding.

Video Display: https://www.youtube.com/watch?v=DZTtwaGqgJo

Product Specification
Applicable fiber
SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Diameter of cladding
80 -150μm
Diameter of coating
160 – 900μm
Typical splice loss
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss
>60db
Fiber cleaved length
10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program
40 groups
Operate mode
Manual, Automatic
Auto-heating
Available
Typical splicing time
6 seconds
Tube heating time
16 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification
250X(X or Y view), 125X(X and Y view)
Viewing method and display
2 CMOS cameras, 5.0 inch color LCD monitor
Storage of splice result
4000 results
Loss evaluation
Available
Tension test
1.8-2.2N
Interface
GUI menu interface, easier operation
Battery capacity
5200mAh Li-battery, typical 250 cycles(splice and tube heat)
Power supply
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life
More than 4000 ARC discharges, can be replaced conveniently
Terminals
USB 2.0 port, for uploading splice results and upgrading software
Operating condition
Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s
Dimension
160mm(L)x136mm(W)x140mm(H)
Weight
2.2kg including battery GW:8.2kg Package:57.5*34*31kg
Package
Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg

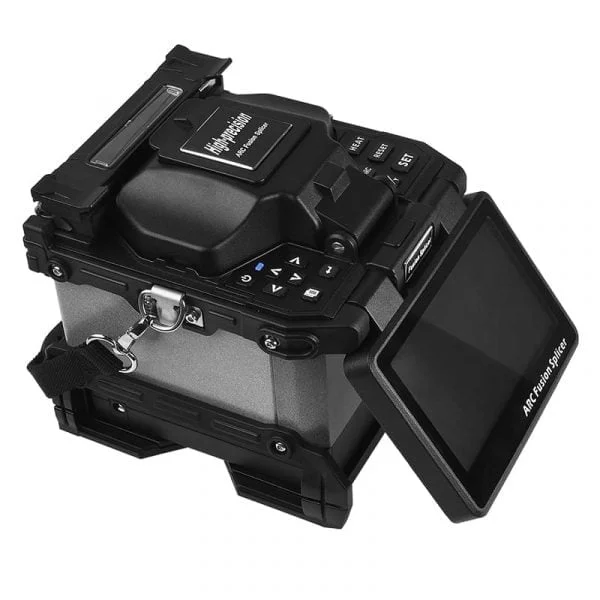

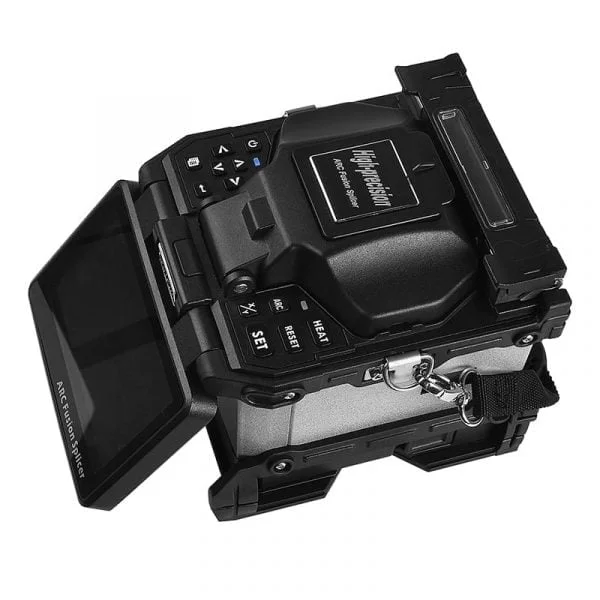

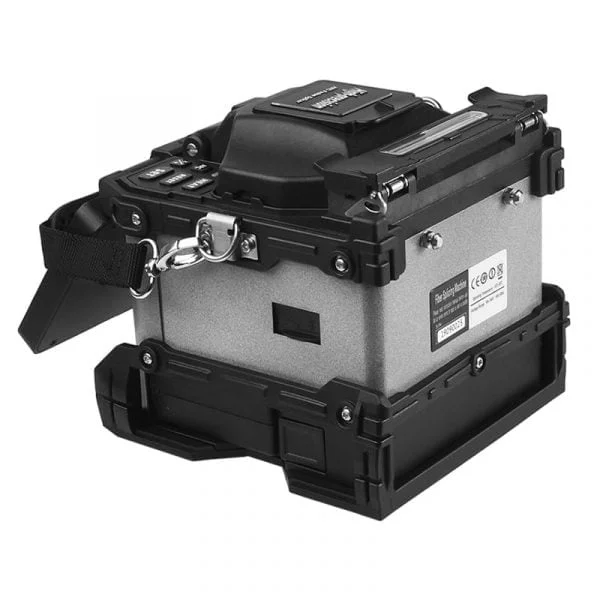

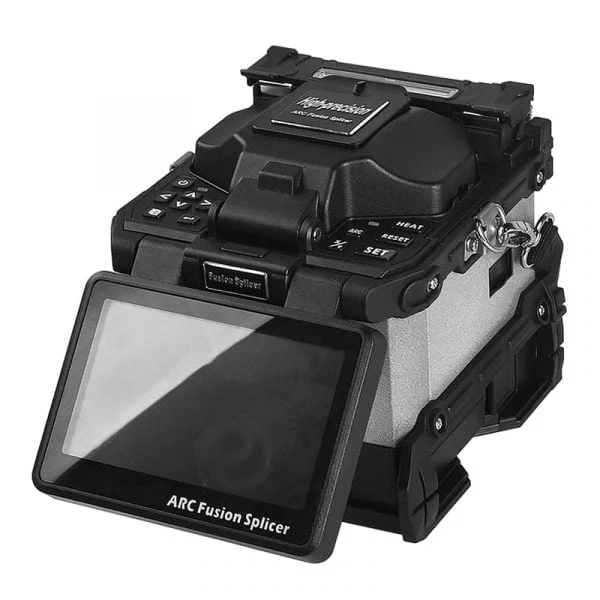

Fusion Splicer BT-A900

Fusion Splicer BT-A900Fusion Splicer BT-A900
