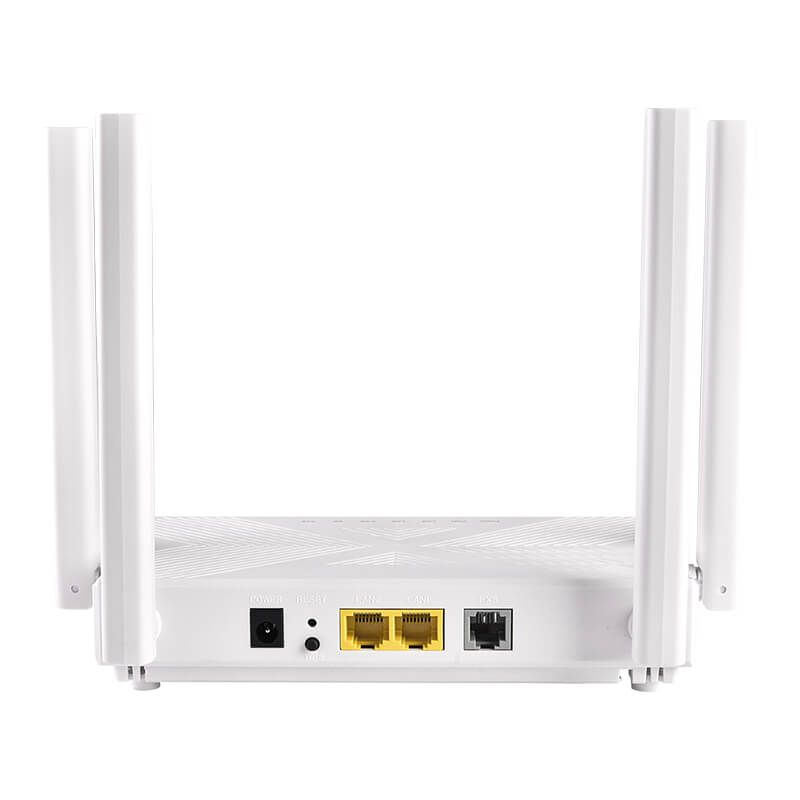

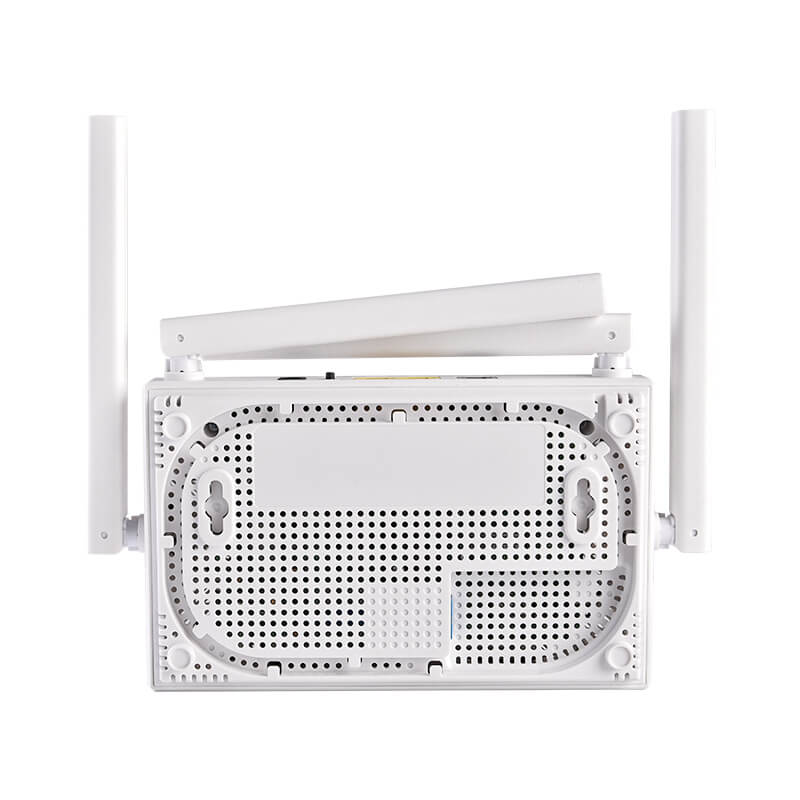

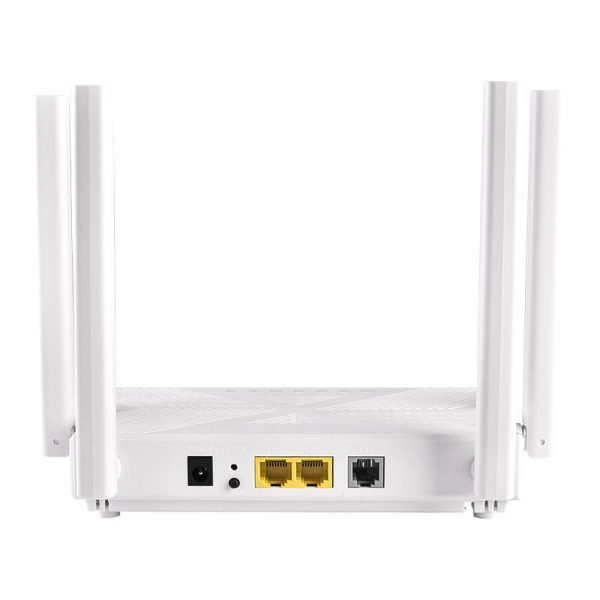

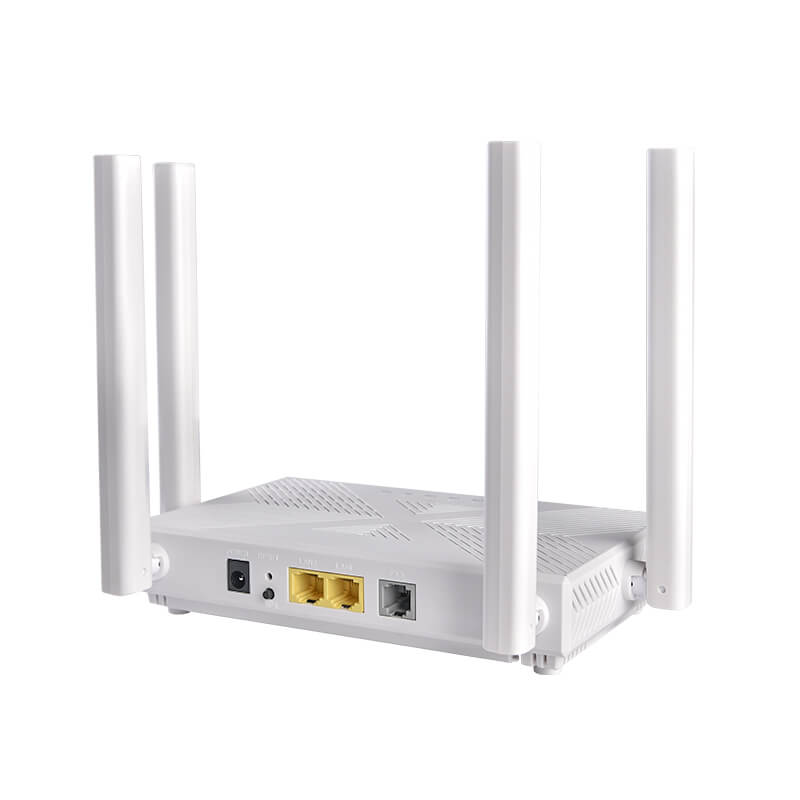

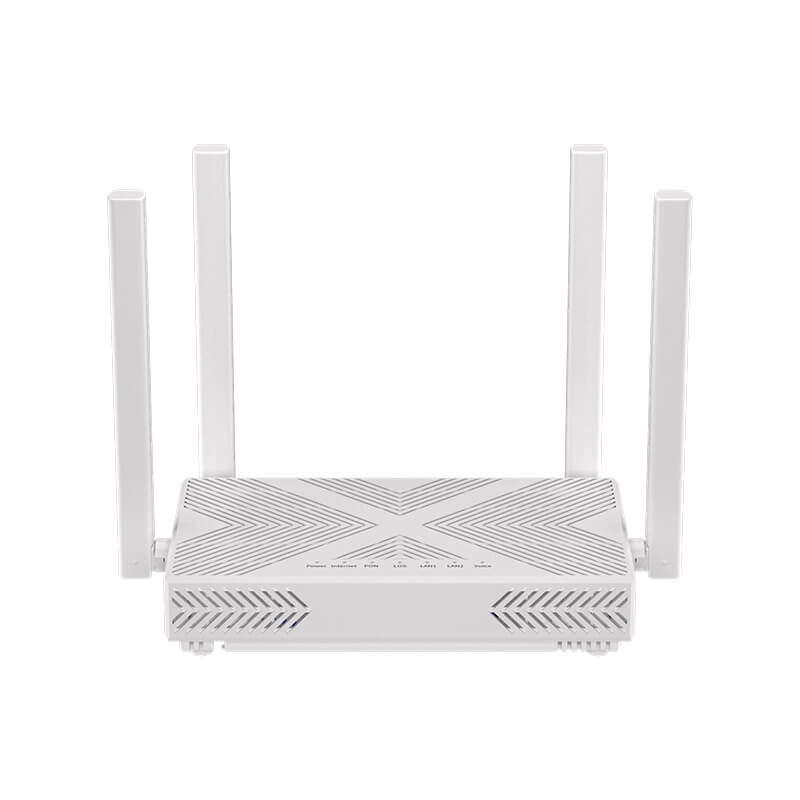

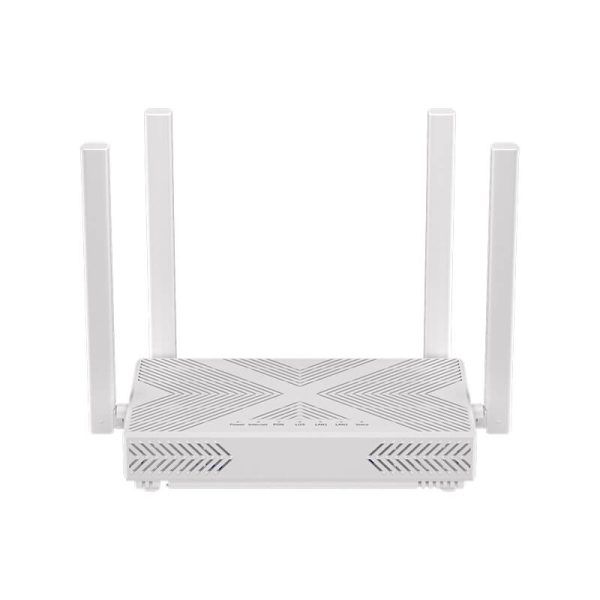

WIFI6 AX1500 2GE Voice XPON ONT BT-G716AX
2*1GE+TEL+2.4G+5G WIFI6 AX1500 / external antennas）
♦ Extreme wireless speed ofup to 1500Mbps
♦ All-in-one Device
♦ Full Gigabit Wired
♦ Supports VoIP Calls
♦ Manage Your Network with Advanced Features
The BT-G716AX supports 1201 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band, is ideal for multi-user household. With ON-G716AX, all of your family memberscan play video games, listen to music, check email, shop, stream movies, andmore-all simultaneously and without lag or buffering. BT-G716AX is an one-stop solution that make everything of your home connected. It supports Internet/IPTV/NolP and other services,and features large transmission capacity,fast speeds and high reliability. Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission dis- tance up to 20km.Higher bandwidth support makes it possible to integrate and provide more additional services with the same device.
BT-G716AX support the ONT Management and Control Interface (OMCl),making it easy to configure,activate and manage remotely from an Optical Line Terminal(OLT).
| Hardware Specifications | |
| Size | 170x105x31 mm |
| Interfaces | 1xSC/APC XPON Port 2x10/100/1000Mbps LAN Ports 1xFXS Port |
| Buttons | WPS/WiFi Button, Reset Button |
| Power Supply | DC 12V 1A |
| Antenna | 4x5dBi Antennas |
| GPON Standards | ITU-T G.984.x |
| Distance | 20Km Max |
| Data Rates | Upstream: 1.25Gbps,Downstream:2.5Gbps |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g2.4 GHz |
| Signal Rate | 5 GHz:1201 Mbps (802.11ax), 2.4 GHz: 300 Mbps (802.11n) |
| Operation Frequency | 2.4GHz & 5GHz |
| Wireless Security | WEP/WPA2/WPA2 Mix/WPA3/WPA3 Transition |
| VOlP Standards | SIP(RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
| Software Features | |
| WAN Type | DynamicIP/Static IP/PPPoE |
| DHCP | Server,Client,DHCP Client List,Address Reservation |
| Quality of Service | WMM,Bandwidth Control |
| Port Forwarding | Virtual Server,Port Triggering,UPnP,DMZ |
| VLAN | 802.1Q tag VLAN,VLAN transparent mode/VLAN translation mode/VLAN trunk mode |
| Access Control | Parental Control,Local Management Control,Host List,Access Schedule,Rule Management |
| Firewall Security | DoS,SPI Firewall IP Address Filter/MACAddress Filter/Domain Filter IP and MAC Address Binding |
| Management | Access Control Local Management Remote Management |
| VOIP Features | One RJ-11 FXS ports for connecting to analog telephones Call forwarding,Call waiting,Call block,3-way conference call,etc. |
| Internet Protocol | IPv4,IPv6 |
| Environment | |
| Operating Temperature | 0℃~40℃(32°F~104°F) |
| Storage Temperature | -40℃~70℃(-40°F~158°F) |
| Relative Humidity | 10%~90%,non-condensing |
| 10%~90%,non-condensing | 5%~95%,non-condensing |
| Package Contents | 1xXPON ONU Installation Guide 1xPower Adapter 1x Ethernet Cable |
