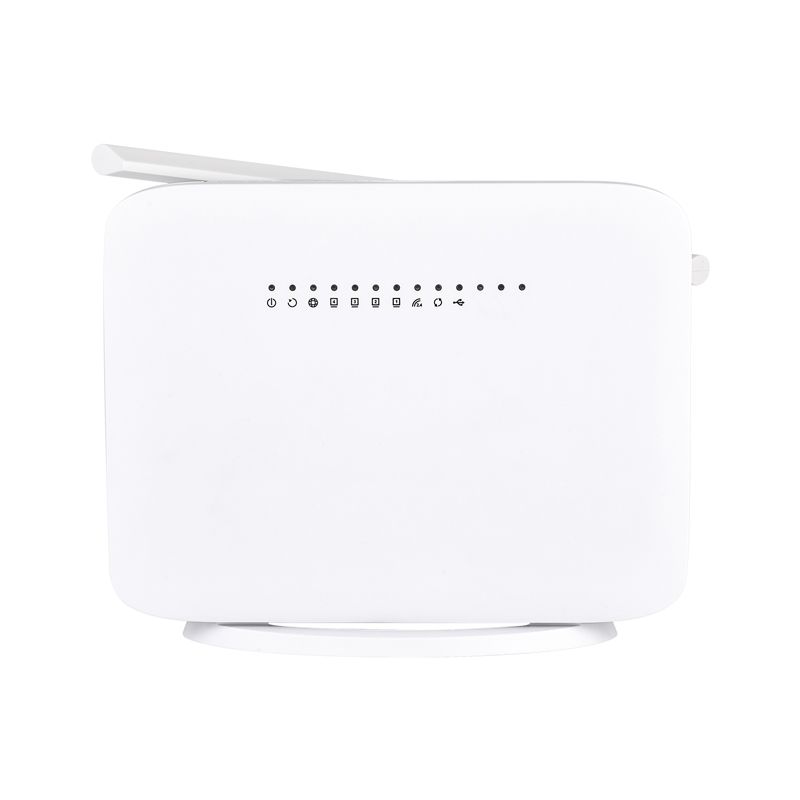

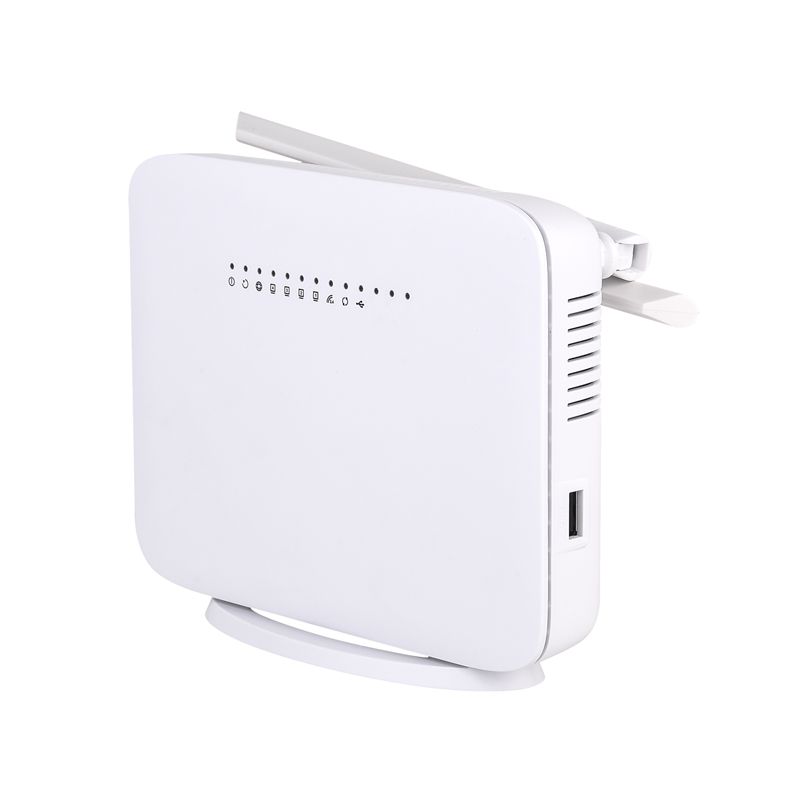

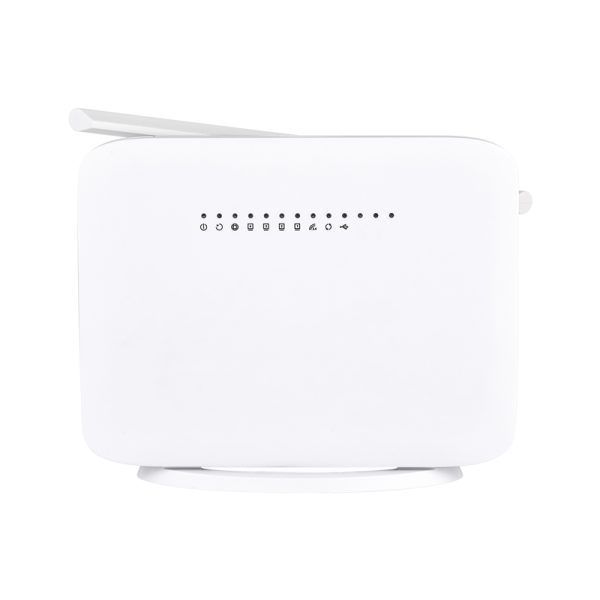

VDSL Modem 1GE 3FE 2.4G Wireless AZ630
1 * VDSL + 1GE + 3FE + 2 . 4G WIFI / external antennas
♦ Support Bridge, DHCP, PPPoE and Static IP address Internet access, IPv4/IPv6 dual stack, wizard, Ethernet/ATM/PTM Three uplink modes
♦ WiFi4 basic functions / advanced settings, Guest network, WEP / WPA / WPA2 encryption, WPS, 802.1X
♦ WEB/DHCP Server/SNTP /TR069
♦ Device management, User management, Configuration management, Upgrade management, Log management, Status statistics, Restart / reset, Diagnostic test
♦ ALG, DMZ, Virtual server, DDNS, UPnP, VLAN, Port binding, QoS, IGMP, Samba, Static routing
♦ Anti DoS attack, MAC filter, IP / port filter, Domain name filter, ACL filter
The AZ630 is a megabit single band wireless Modem, which supports 2.4G wireless network, and provides the latest 30a VDSL access. It is a security solution for home, broadband remote office and small-scale SOHO network.
| Main Chips | EN7512+MT7592+EN7556N |
| Flash | 128MB SPI NAND |
| Memory | 128MB DDR2 SOC Embedded |
| Wireless Protocol | IEEE 802.11b/g/n |
| Wireless Transfer Rate | WiFi: 2.4G=300Mbps VDSL30a: uplink 100Mbps, downlink 100Mbps |
| FR Index | 2.4G 11N HT40 MCS7=16dBm(+/-2dB) |

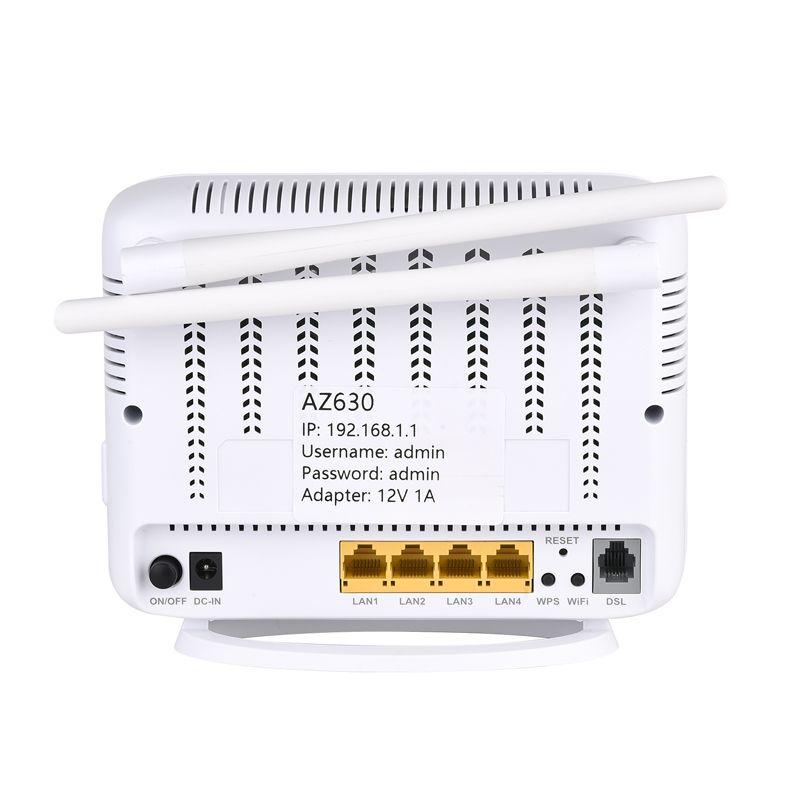

| External Interface | 3*FE +1*GE LAN 1*DSL VDSL2+/30a 1*USB2.0 1*DC JACK |
| Indicator Lights | Power, DSL, INT, LAN4-1, 2.4G, WPS, USB |
| Buttons | 1*PWR 1*WPS 1*Reset 1*WLAN |
| Antennas | 2*2.4G 3dBi fixed internal/external antennas |
| Power Adapter | DC 12V 0.5A |
| Temperature | Operating Temperature: 0 ℃ to +40℃ Storage Temperature: -20 ℃ to +70 ℃ |
| Humidity | Operating Humidity: 10% to 95% non-condensing Storage Humidity: 5% to 95% non-condensing |
| Dimensions | 170mm*36mm*137.5mm |
| Weight | 295g |
| Certificates | Meet CE certification standards |
| Order Information | [AZ630] 4*LAN 1*VD 1*USB |
| WAN Connection | Support Bridge, DHCP, PPPoE and Static IP address Internet access, IPv4/IPv6 dual stack, wizard, Ethernet/ATM/PTM Three uplink modes |
| Wireless Function | WiFi4 basic functions / advanced settings, Guest network, WEP / WPA / WPA2 encryption, WPS, 802.1X |
| Wireless Encryption | Wireless Encryption W E P/ W P A / W P A 2 , W P S , 802.1X |
| Management Function | WEB/DHCP Server/SNTP /TR069 |
| Advanced Function | ALG, DMZ, Virtual server, DDNS, UPnP, VLAN, Port binding, QoS, IGMP, Samba, Static routing |
| Safety Function | Anti DoS attack, MAC filter, IP / port filter, Domain name filter, ACL filter |
| Software System | Linux |
