FTTH 1GE Micro Mini 1.25Gbps xPON ONU G125X

xPON ONU 1GE

♦ Router mode supports PPPoE/DHCP/static IP
♦ Support port-based rate limitation and bandwidth control
♦ In compliant with ITU-T G.984 Standard Up to 20KM transmission Distance
♦ Support data encryption, group broadcasting, port VLAN separation, etc.
♦Support Dynamic Bandwidth Allocation(DBA)
♦ Support IPv4 & IPv6
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support VLAN division and user separation to avoid broadcast storm
♦ Support power-off alarm function, easy for link problem detection
♦ Support broadcasting storm resistance function
♦ Specialized design for system breakdown prevention to maintain stable system
♦ Support software online upgrading EMS network management based on SNMP, convenient for maintenance

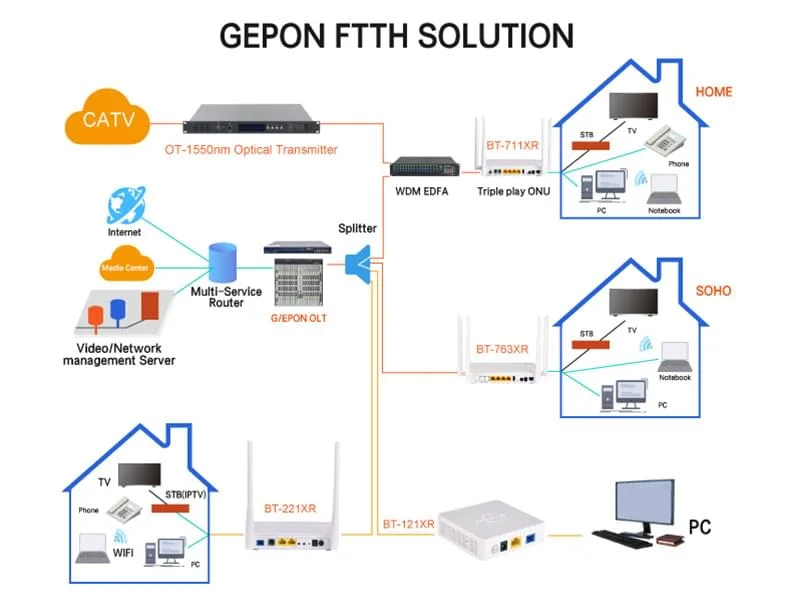

G125X series single-user ONU is designed for ONU in different FTTH solutions, The carrier-class FTTH application provides date service access.

G125X series adopts high-performance and low-consumption chips, and supports CTC V2.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices. G125X series is designed by ZTE chipset. G125X series is designed by ZTE chipset.



PON Interface1 XPON optical interface
Meet Class B+ standard
Upstream 1.244Gbps, downstream 2.488Gbps
SC-UPC single-mode fiber
split ratio:1:128
Transmission distance 20KM
User Ethernet Interface1*10/100/1000M auto-negotiation
Full/half duplex mode
RJ45 connector
100m distance
Power Interface5V Type-C Power supply
PON Optical ParameterWavelength: Tx 1310nm, Rx1490nm
Tx Optical Power:0.5~+5dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -8dBm
Connector Type: SC-UPC
Optical Fiber: 9/125um single-mode fiber
Data Transmission ParameterPacket Loss Ratio:<1*10E-12
latency: <1.5ms
GatewayRouter mode supports PPPoE / DHCP/ static IP
WAN support Router and Bridge mode
WAN support Internet
LAN supports DHCP and static IP
Support NAT and NAPT
Business CapabilityLayer 2 wire speed switching
Support VLAN TAG/UNTAG, VLAN conversion
Support Port-based speed limitation
Support Priority classification
Support storm control of broadcast
Management ModeSupport ITU-T G.984 OMCI, ONU can be remotely
managed by OLT
Support Remote management through Telnet or
http
Local management
Management FunctionStatus monitor, Configuration management,
Alarm management, Log management
LED IndicatorPWR: Power up or down
LOS: Optical Link Status
PON:ONU Registered
LINK/ACT: Link Status of Ethernet Interface
ShellPlastic casing
PowerExternal 5V 1A Type-C power supply Power consumption:
<2W(FD101HC),<2.3W(FD111HC)
Physical SpecificationsItem Dimension:92mm(L) x 21.5mm(W) x 17mm (H) Item weight:0.03kg
Environmental SpecificationsOperating temperature: -20 to 70 ºC
Storage temperature: -40 to 85 ºC
Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing)
