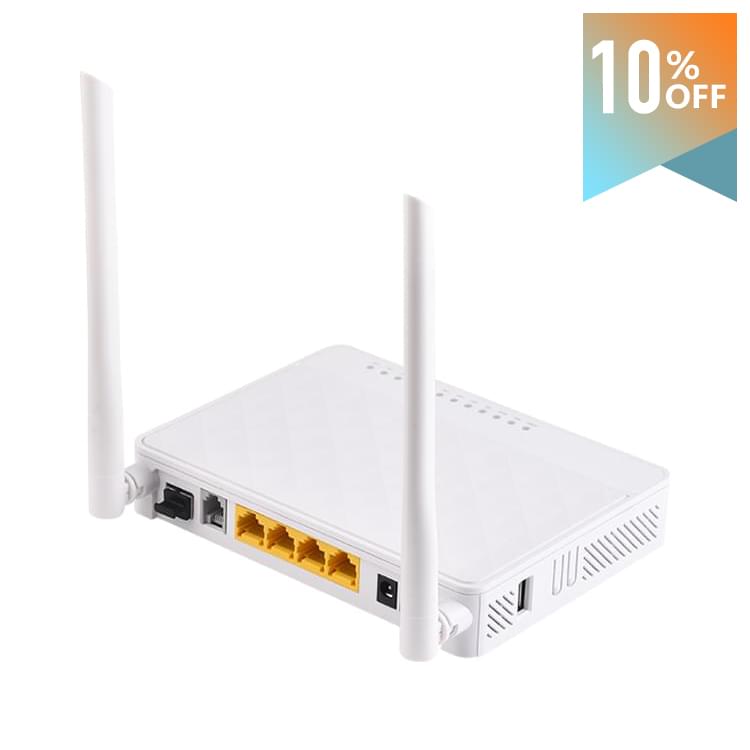

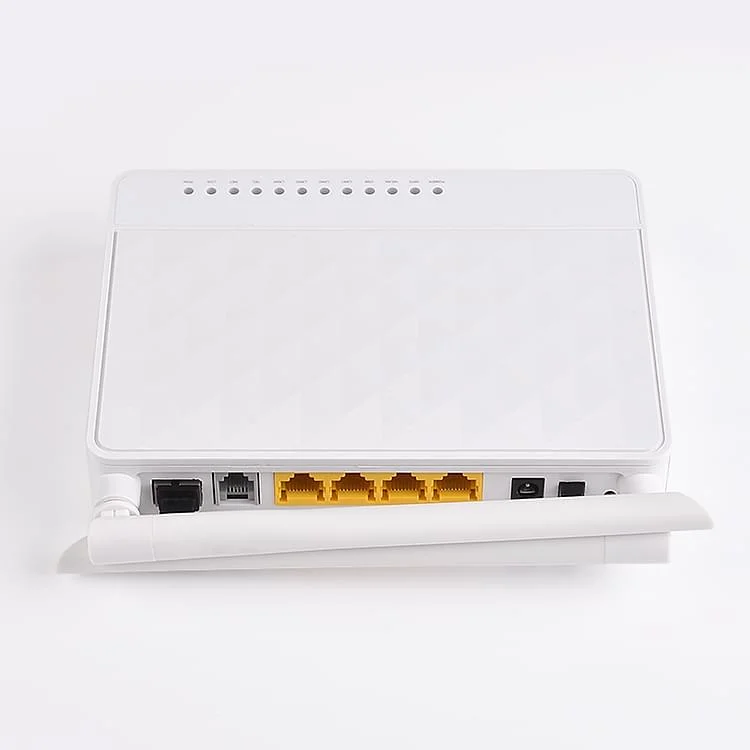

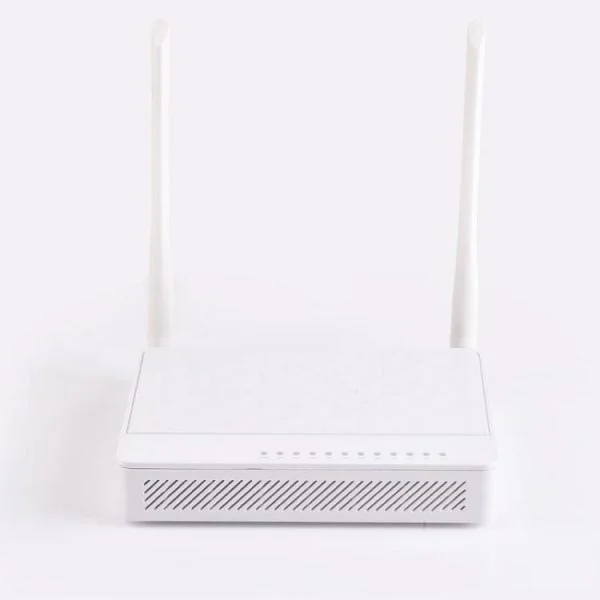

4FE Voice WiFi ONU BT-601GB
4FE+1VOIP+2.4G WIFI(external antennas）
♦ Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Bi-directional FEC
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP
♦Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909
Promotion Ranges: BT-601GB/BT-601EB, BT-BCM6838G+/E+, BT-BCM6838G/E
BT-601GB features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome and so on.

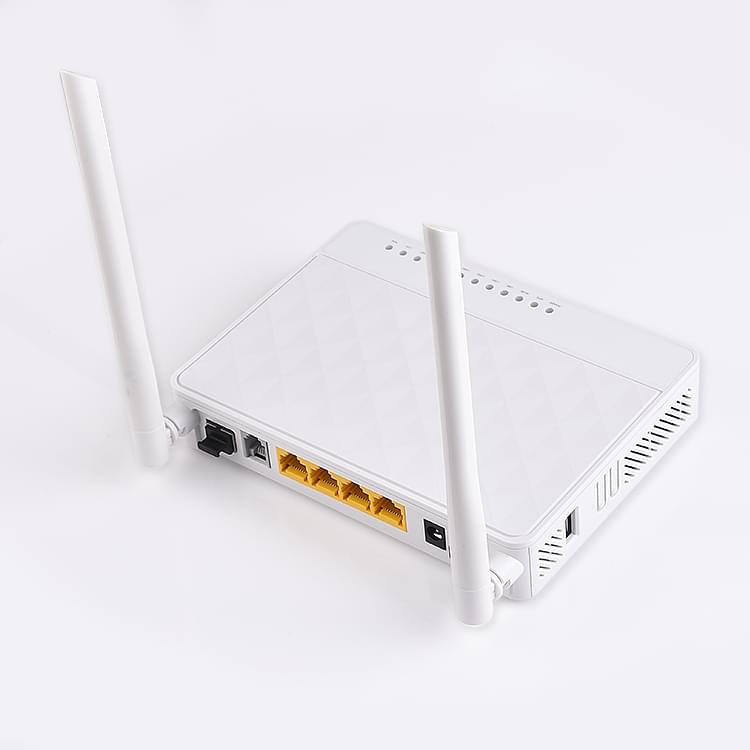

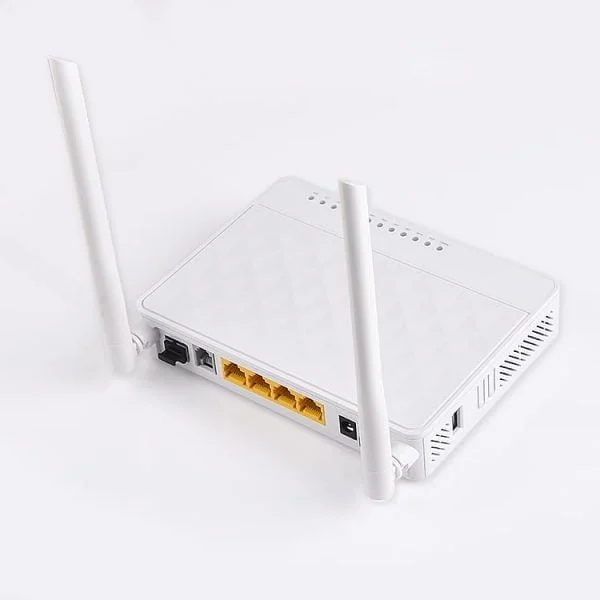

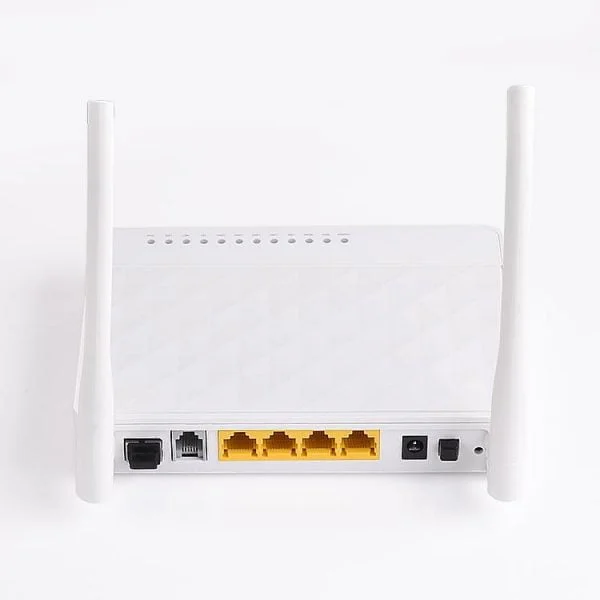

Fiber Optic Modem 4fe Voice Wifi Bt-601gb Sfp Fibre Onu Gpon
| Hardware Specifications | |
|---|---|
| Size（L*W*H） | 165mm (L) *162mm (W) *28mm (H) |
| Optical signal access | 1*GPON |
| User interface | 4FE+VOIP+2.4G WLAN+1USB |
| Indicator light | POWER/WPS/WLAN/USB/LAN1/LAN2/LAN3/LAN4/TEL/INTERNET/LOS/PON |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 300g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | SFP Class B+ SC/PC |
| Working wavelength | up 1310nm，down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power value | Receiver sensitivity：-27dBm |
| Overload optical power：-8dBm | |
| Transmission distance | 0～20km |
| Transmission rate | Uplink 1.244Gbps；downlink 2.488Gbps |
| Ethernet interface | |
| Interface type | RJ45 |
| Interface parameters | 1*10/100/1000Mbps and 3*10/100Mbps or 4*10/100Mbps auto adaptive Ethernet interfaces |
| Wireless | |
| Working mode | IEEE 802.11 b/g/n |
| Antenna pattern | External 2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz |
| Interface rate | Maximum rate 300Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
| POTS interface | |
| Interface type | 1* RJ11 |
| Voice agreement | SIP |
| Codecs | G.711/G.723/G.726/G.729 |
| Integrated circuit protocol | Gr-909 protocol is applicable |
