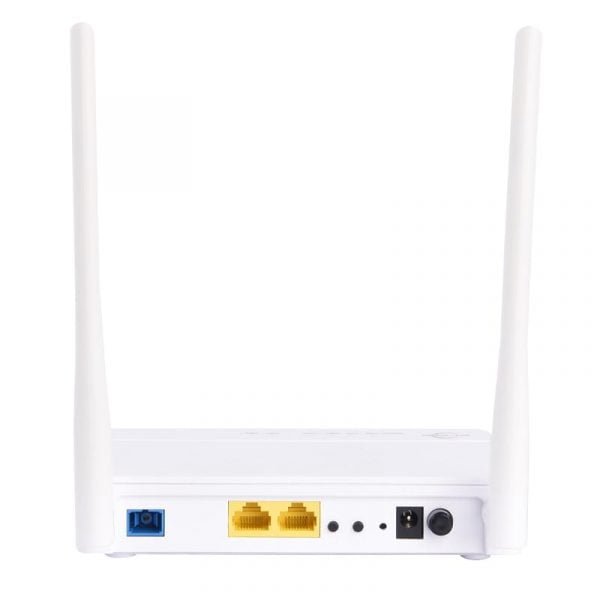

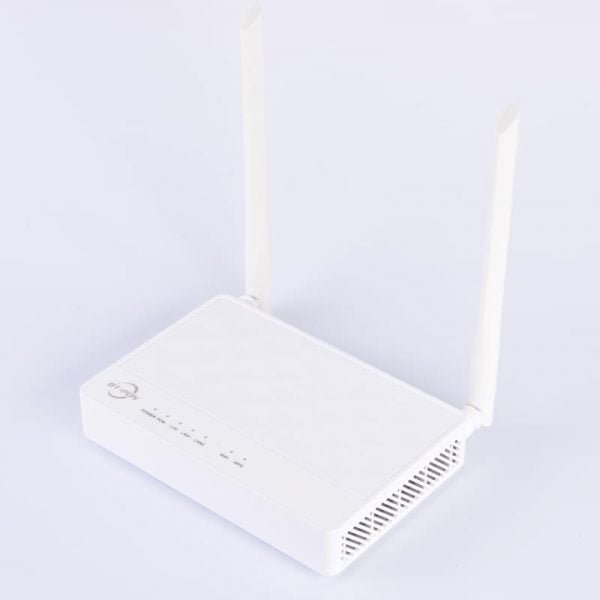

BT-PON Gpon ont 1ge 1fe Wifi Bt-223xr

1GE+1FE+2.4G WIFI(external antennas)

♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP

Description

BT-223XR XPON ONU is of very high reliability and provides quality of service, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

BT-PON Gpon ont Wifi 1ge 1fe Wifi Home Network Fiber Optical Solution Bt-223xr
Hardware Specifications
Size(L*W*H)155mm (L) *113mm (W) *28mm (H)
Optical signal access1*GPON/EPON
User interface1GE+1FE+2.4G WLAN
Indicator lightPOWER、PON、LOS、LAN1、LAN2、、WIFI、WPS
ButtonPower switch Button, Reset Button, WLAN Button, WPS Button
Weight192g
Power adapter input100V~240V AC,50Hz~60Hz
PowerSupply requirement12V DC,1.5A
Power consumption<10w
Working temperature-10°C ~ +45°C
Environment humidity5% ~ 95% (Non-condensing)
PON Interface
Module typeClass B+ SC/UPC
Working wavelengthup 1310nm,down 1490nm
TX Optical power value0.5~4dbm
RX Optical power sensitivity -28dBm
Transmission distance0~20km
Transmission rateGPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type 2*RJ45
Interface parameters1*10/100/1000Mbps and 1*10/100Mbps
Wireless
Working modeIEEE 802.11 b/g/n
Antenna patternExternal 2T2R External antenna
Antenna gain5dBi
Wireless bandwidthSupport 20MHz/40MHz
Interface rateMaximum rate 300Mbps
SSIDUp to 4 SSID broadcasts are supported
