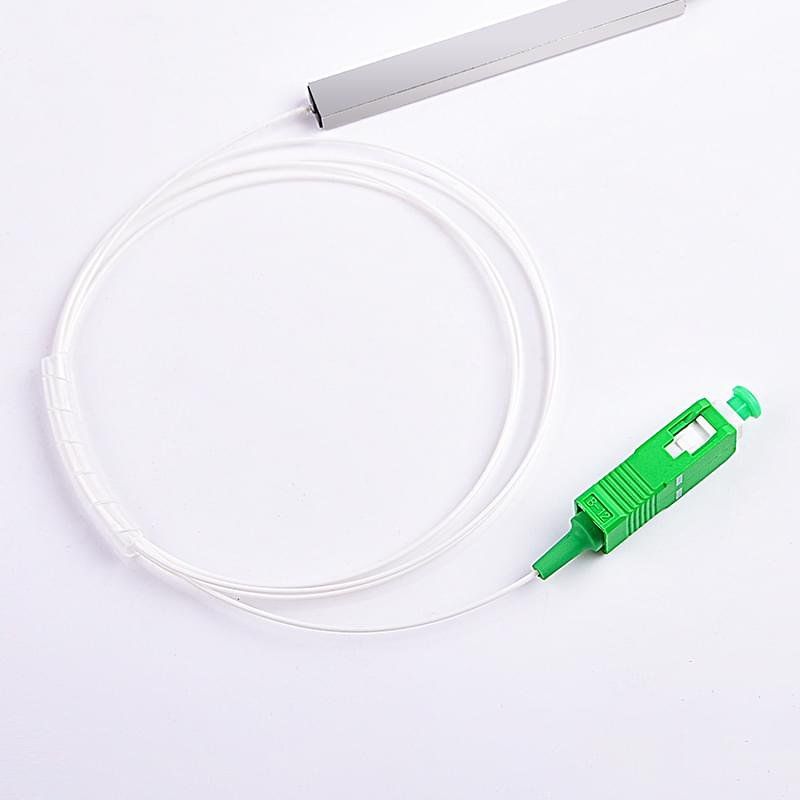

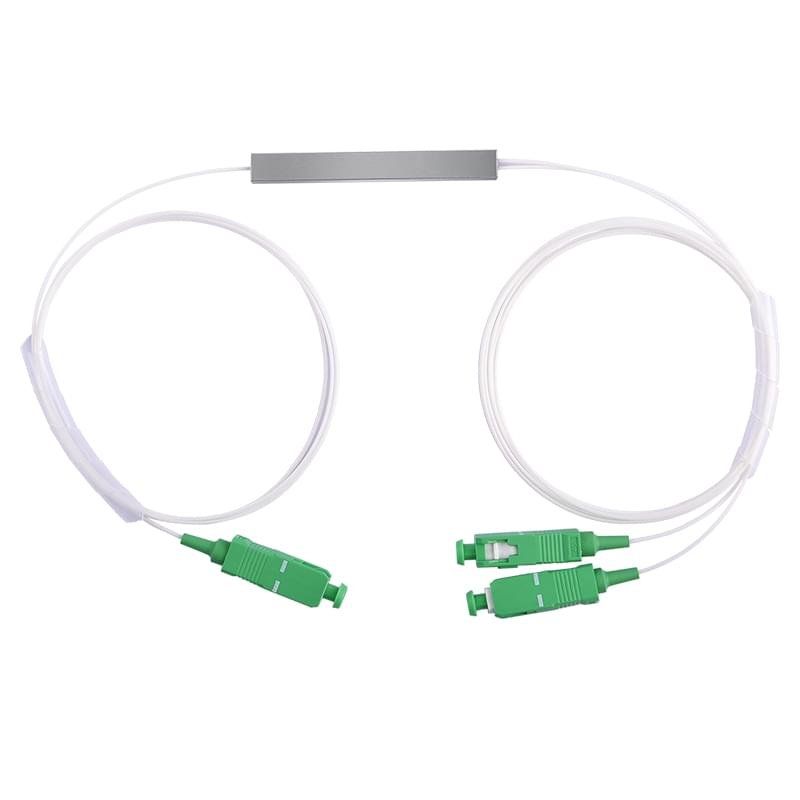

BT-PON Fiber Splitter 1×2
Feature
— Low insertion loss & High return loss
— Good exchangeability
— Good Durability
— High temperature stability
— Superior PC/UPC/APC Polishing
— Standard: IEC Grade B
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
Applications:
–Fiber Optic communications system
–Fiber Optic access networks
–CATV/CCTV
–Fiber Optic data communication
–Fiber Optic Test Equipment
| Technical Specifications | |
|---|---|
| Optical Performance | |
| Polishing | UPC APC |
| Testing Wavelength | 1310nm & 1550nm |
| Insertion Loss | ≤0.25dB |
| Return Loss | ≥50dB |
| Endface Geometry Performance | |
| Item | Φ1.25/2.5 mm Ferrule |
| Radius of Curve | 7 to 25mm |
| Apex Offset | 0 to 50μm |
| Fiber Height | -50 to 50nm |
