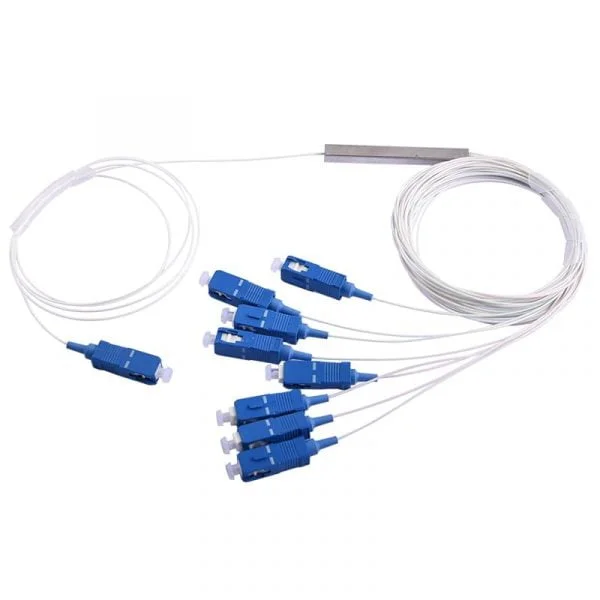

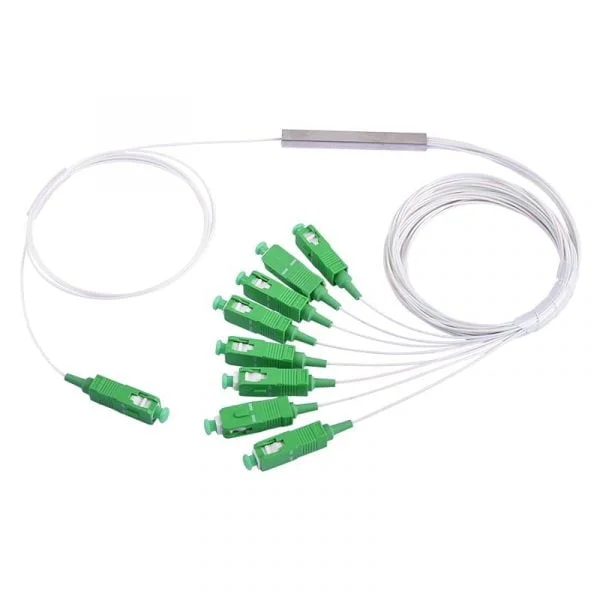

BT-PON 1×8 PLC Splitter

Features:

♦ Good uniformity and low insertion loss
♦ Low Polarization Dependent Loss
♦ Excellent Environmental Stability
♦ Excellent Mechanical
♦ Stability Telcordia GR-1221 and GR-1209

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON GPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON GPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.

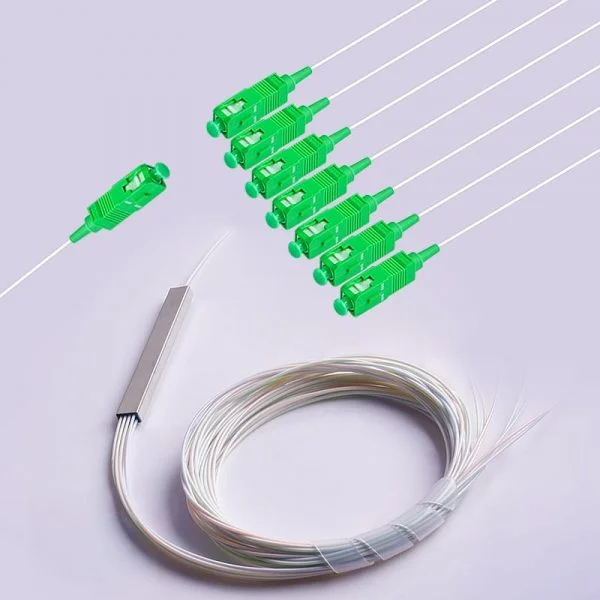

Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Application

♦ Active dvice termination
♦ Telecommunication networks
♦ Local Area Networks(LANs)
♦ Data Processing networks
♦ Test Equipment
♦ Wide Area Networks(WANs)

Technical Specifications
Optical Performance
PolishingUPC APC
Testing Wavelength1310nm & 1550nm
Insertion Loss≤0.25dB
Return Loss≥50dB
Endface Geometry Performance
ItemΦ1.25/2.5 mm Ferrule
Radius of Curve7 to 25mm
Apex Offset0 to 50μm
Fiber Height-50 to 50nm
