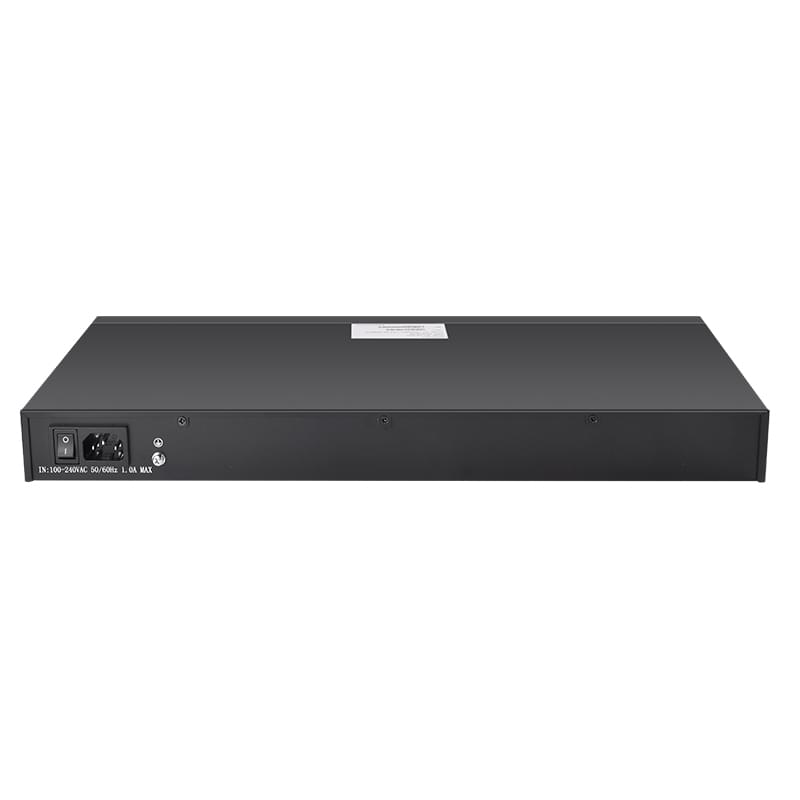

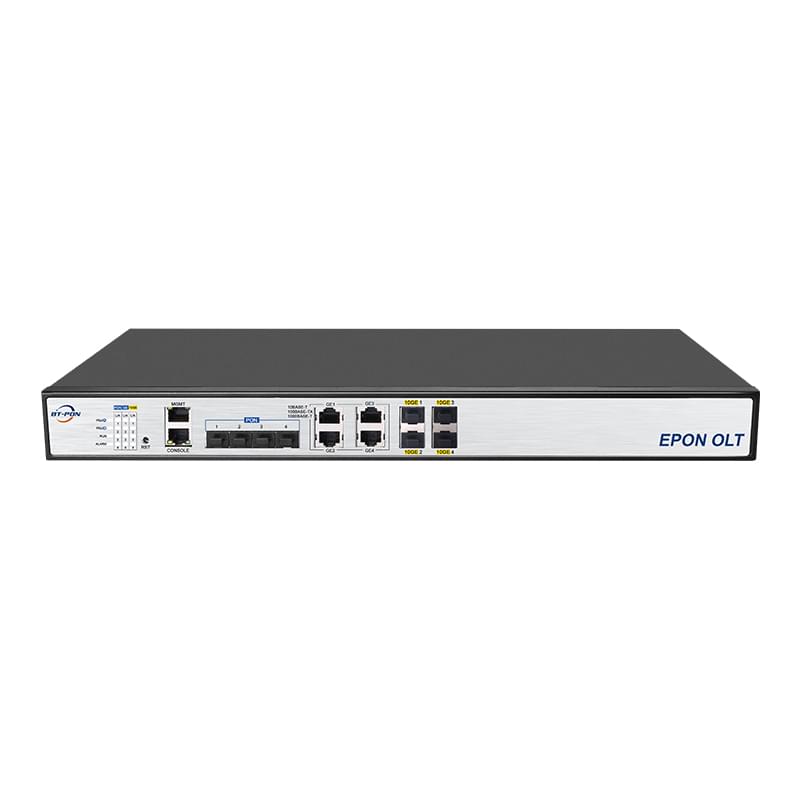

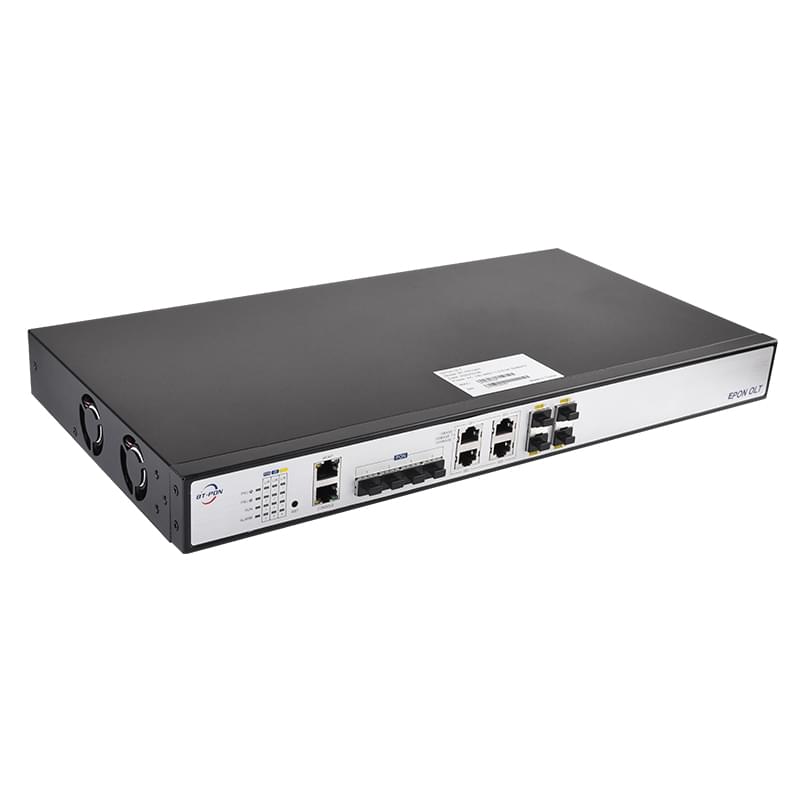

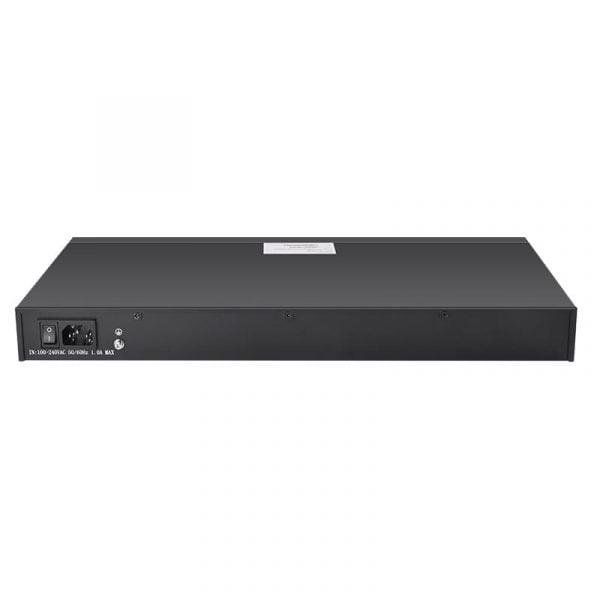

(NEW) 4 ports EPON OLT BT-P6104H

4 ports EPON OLT

♦ Compatible with OLT Huawei/ ZTE/Fiberhome;
♦ 4K VLAN entries/Port-based QinQ and Selective QinQ (StackVLAN)/Port-based/MAC-based/IP subnet-based VLA;
♦ MAC Black Hole/Port MAC limit/16K MAC address;
♦ Port: Bi-direction bandwidth control/Port mirroring and traffic mirroring
♦ Multicast: IGMPv1/v2/v3、IGMP Snooping/Proxy、IGMP filtering
♦ L2: LACP/VLAN Tag / Un-tag/VLAN transmission/QinQ/802.1D/802.1W、IEEE802.x Flow Control/Port Isolation/Port Rate Limitation/Storm control
♦ Routing(L3): BGP/MPLS/RIP/OSPF/Arp agent,Static routing
♦ Command-line interface(CLI), Console, Telnet and WEB configuration
♦ RMON (Remote Monitoring)1/2/3/9 groups of MIB
♦ System configuration with SNMPv1/v2/v3
♦ NTP(Network Time Protocol)
♦ NMS2000 network management

BT-P6104H(4 ports EPON OLT BT-P6104H) OLT is self-developed Compact 1U EPON OLT equipment,meeting the requirements of IEEE802.3ah and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network ——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0, possessing super EPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. BT-P6104H can be used with NMS2000 network management system so as to provide users with the perfect solution.

BT-P6104H OLT provides 4 *Downsteam EPON ports, 4 * Uplink GE ETH ports, 4* Uplink SFP+ ports. Up to 1:64 Split ratio for up to 256 EPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. BT-P6104H is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB projects.

Network interface
EPON interface4 x GPON (2.5/1.25 Gbps)
Uplink Optical Interface4 x 10GE/GE SFP+
Uplink Ethernet Interface4 * GE RJ45
PON interface
EPONIEEE 802.3ah EPON
Local Management interface
ConsoleRJ45 EIA/TIA-232 Console management port
MGMT100BASE-T out-band management port
Performance
Switching Capacity103Gbps
Package transmit rate(IPv4/IPv6)125Mpps
Split ratio1: 64
Maximum ONU quantity256 ONT
Power Supply and Consumption
Power AdaptorAC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy DesignPluggable double power supply, double AC, double DC and AC+DC
Consumption<46 W
Environmental conditions
Storagetemperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operationtemperature -5 to 50°C, rel. humidity 10–90% (non-condensing)
Physical specifications
Dimensions440mm×260mm× 44mm(W * D *H)
Weight2.55KG
Ethernet switching (L2) features
VLAN4K VLAN entries/Port-based QinQ and Selective QinQ (StackVLAN)
Port-based/MAC-based/IP subnet-based VLA
Spanning treeIEEE 802.1x STP/RSTP/MSTP
ONU remote loop detection
MACMAC Black Hole/Port MAC limit/16K MAC address
PortBi-direction bandwidth control
Port mirroring and traffic mirroring
MulticastIGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering
QoSBase on port or user-defined rate limitation
Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
Base on port or user-defined high grade queue scheduling
priority queues and scheduler of SP, WRR and SP+WRR.
Congestion avoidance system
L2LACP/VLAN Tag / Un-tag/VLAN transmission/QinQ/802.1D/802.1W
IEEE802.x Flow Control/Port Isolation/Port Rate Limitation/Storm control
Routing(L3)BGP/MPLS/RIP/OSPF/Arp agent,Static routing
Security features
User securityAnti-ARP-spoofing deceive defend
Anti-ARP-flooding flooding attack automatic control
IP,MAC,port and VLAN binding
Port isolation
Device securityDefend DOS attack
Security IP login through Telnet
Hierarchical management and password protection of users
TACACS+
Network securityIP address、VLAN ID、MAC address and port manual binding
Port broadcast /multibroadcast restrain
Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/
destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package
flow classify and flow defined regulation management,support package header 80 byte
depth L2-L7 ACLflow filtrate
Dynamic ARP table-based binding
DHCP Option82 and PPPoE+ upload user’s physical location
Network managementCommand-line interface(CLI), Console, Telnet and WEB configuration
RMON (Remote Monitoring)1/2/3/9 groups of MIB
System configuration with SNMPv1/v2/v3
NTP(Network Time Protocol)
NMS2000 network management
