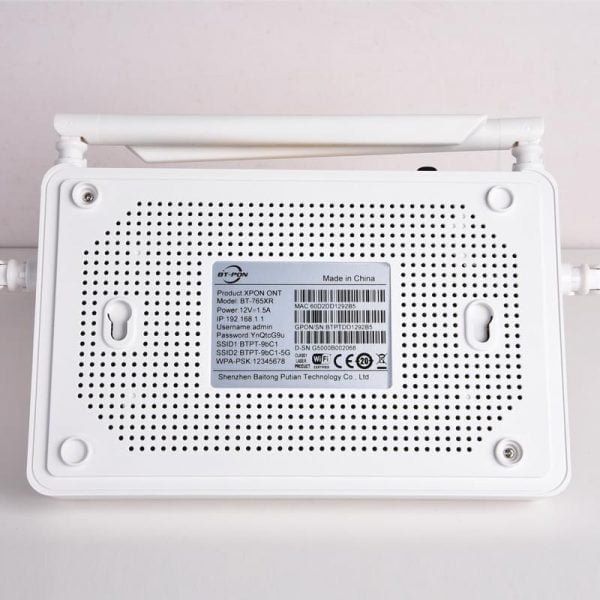

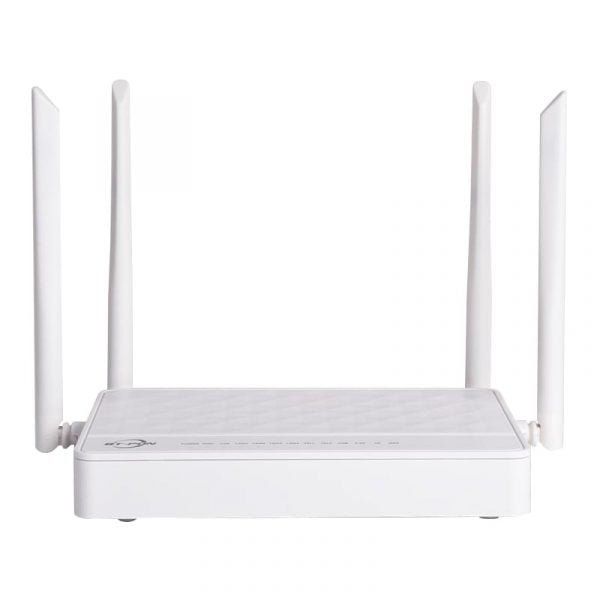

2GE 2FE 2VoIP WiFi Dual Band ONU BT-765XR

2GE+2FE+2VOIP+2.4G+5G(dual band / external antennas)

♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Bi-directional FEC
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP
♦ Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909

BT-765XR  device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

Fiber Optic onu Modem 2ge 2fe 2tel Dual Band Wifi Onu Fiber Optic ont device

Dual Band 2ge 2fe 2tel Wifi Ont BT-765XR Dual Band 2ge 2fe 2tel Wifi Ont BT-765XR Dual Band 2ge 2fe 2tel Wifi Ont BT-765XR Dual Band 2ge 2fe 2tel Wifi Ont BT-765XR

Hardware Specifications
Size(L*W*H)205mm (L) *140mm (W) *30mm (H)
Optical signal access1*GPON/EPON

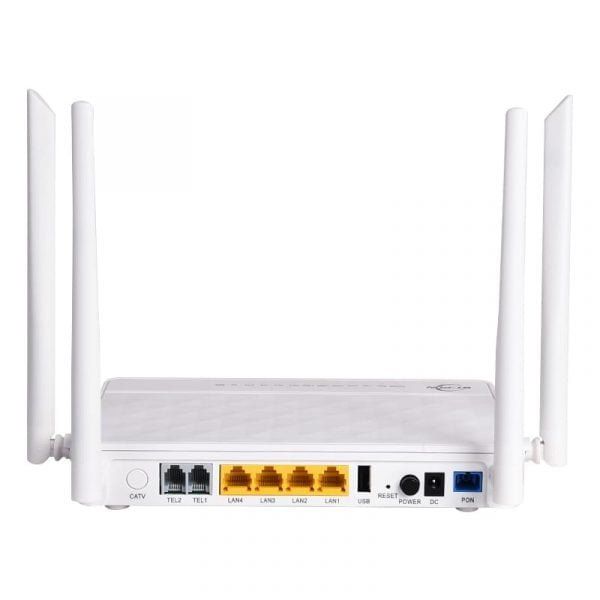

User interface 2GE+2FE+2VOIP+2.4G/5.8G WLAN+1USB
Indicator lightPOWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、TEL1、TEL2、USB、2.4G、5G、WPS、
ButtonPower switch Button, Reset Button, WLAN Button, WPS Button
Weight300g
Power adapter input100V~240V AC,50Hz~60Hz
PowerSupply requirement12V DC,1.5A
Power consumption<10w
Working temperature-10°C ~ +45°C
Environment humidity5% ~ 95% (Non-condensing)
PON Interface
Module typeSC/UPC
Working wavelengthPON:up 1310nm,down 1490nm
TX Optical power value0.5~4dBm
RX Optical power value-27dBm
Transmission distance0~20km
Transmission rateGPON:Up 1.244Gbps;down 2.488Gbps
EPON:Up 1.244Gbps;down 1.244Gbps
Ethernet interface
Interface type4* RJ45
Interface parameters 4*10/100/1000Mbps auto adaptive Ethernet interfaces
Wireless
Working modeIEEE 802.11 b/g/n/AC
Antenna patternExternal 2*2T2R External antenna
Antenna gain5dBi
Wireless bandwidthSupport 20MHz/40MHz/80MHz
Interface rate2.4G WLAN:Maximum rate 300Mbps
5.8G WLAN:Maximum rate 866Mbps
SSIDUp to 4 SSID broadcasts are supported
POTS interface
Interface type2* RJ11
Voice agreementSIP
CodecsG.711/G.723/G.726/G.729
Integrated circuit protocolGr-909 protocol is applicable
