2ge 2fe 2.4g 5g Wifi Catv Onu BT-717XR

2GE+2FE+2.4G+5G+CATV(dual band / external antennas)

♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Bi-directional FEC
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP
Support CATV interface for Video Service,support to turn off CATV functionality

Description

BT-717XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function.

With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.BT-717XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.

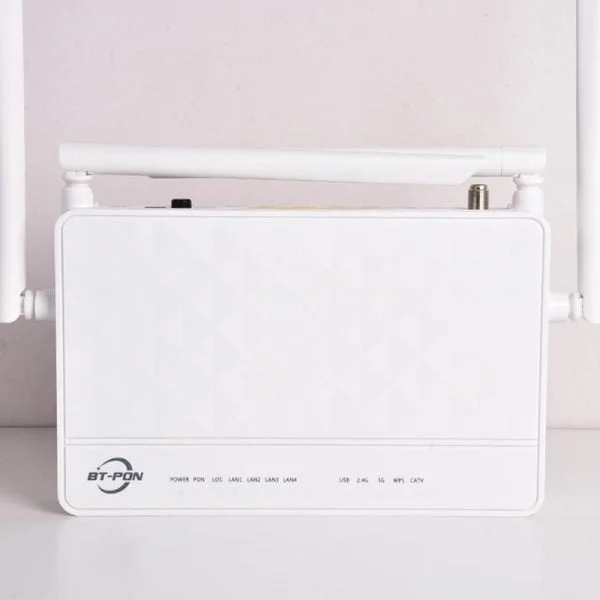

Bt-Pon 2ge 2fe 2.4g 5g Wifi Catv Onu fiber modem
Hardware Specifications
Size(L*W*H)205mm (L) *140mm (W) *30mm (H)
Optical signal access1*GPON/EPON
User interface 2GE+2FE+2.4G/5.8G WLAN+1USB+CATV
Indicator lightPOWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、USB、2.4G、5G、WPS、CATV
ButtonPower switch Button, Reset Button, WLAN Button, WPS Button
Weight300g
Power adapter input100V~240V AC,50Hz~60Hz
PowerSupply requirement12V DC,1.5A
Power consumption<10w
Working temperature-10°C ~ +45°C
Environment humidity5% ~ 95% (Non-condensing)
PON Interface
Module typeSC/APC
Working wavelengthPON:up 1310nm,down 1490nm ;CATV:1550nm
TX Optical power value0.5~4dBm
RX Optical power valueReceiver sensitivity:-27dBm
Transmission distance0~20km
Transmission rateGPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type 4*RJ45
Interface parameters 4*10/100/1000Mbps auto adaptive Ethernet interfaces
Wireless
Working modeIEEE 802.11 b/g/n/AC
Antenna patternExternal 2*2T2R External antenna
Antenna gain5dBi
Wireless bandwidthSupport 20MHz/40MHz/80MHz
Interface rate2.4G WLAN:Maximum rate 300Mbps

5.8G WLAN:Maximum rate 866Mbps

SSIDUp to 4 SSID broadcasts are supported
CATV Interface
Optical receiving wavelength1550±10nm
Optical reflection loss≥45dBm
RF, WDM, optical power+2~-15dBm
RF frequency range47~1000MHz,  RF output impedance: 75Ω
RF output level78dBuV
AGC range0~-12dBm
MER[email protected]
