2FE SFP EPON ONU BT-BCM6821
2FE SFP EPON ONU
♦ Compliant with IEEE 802.3ah specification and OAM protocol
♦ Integrate OAM and TR-069 remote configuration and maintenance
♦ Compatible with Huawei,ZTE and Fiberhome OLT
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Support DDSN, ALG, DMZ and UPNP
BT-BCM6821 model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH EPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

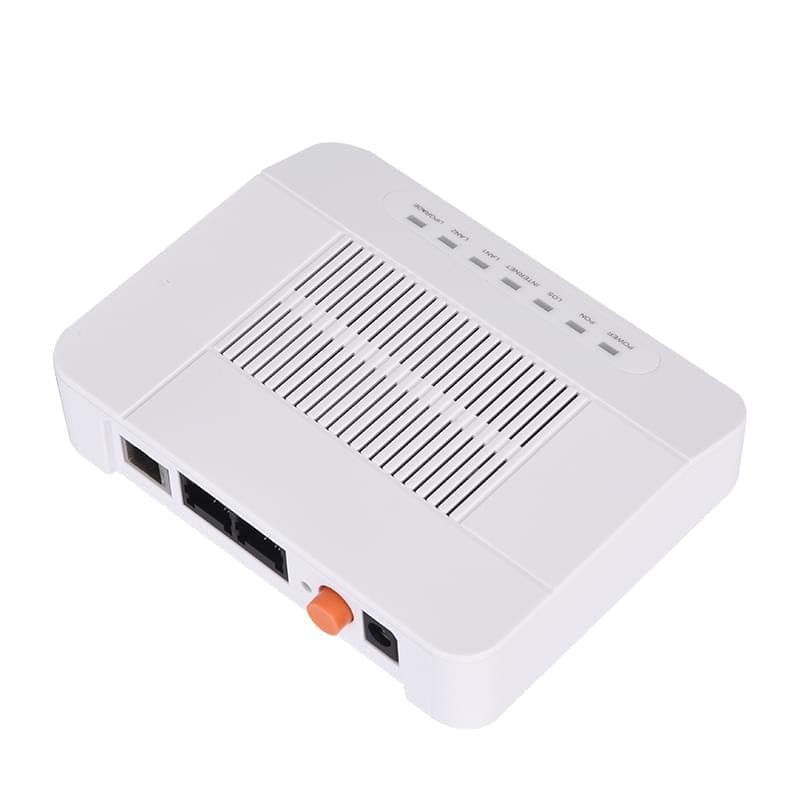

Ftth 2FE SFP Epon Onu BT-BCM6821 Network Pon Modem
| Hardware Specifications | |
|---|---|
| Size（L*W*H） | 120mm (L) ×90mm (W) ×35mm (H) |
| Optical signal access | 1*EPON |
| User interface | 2FE |

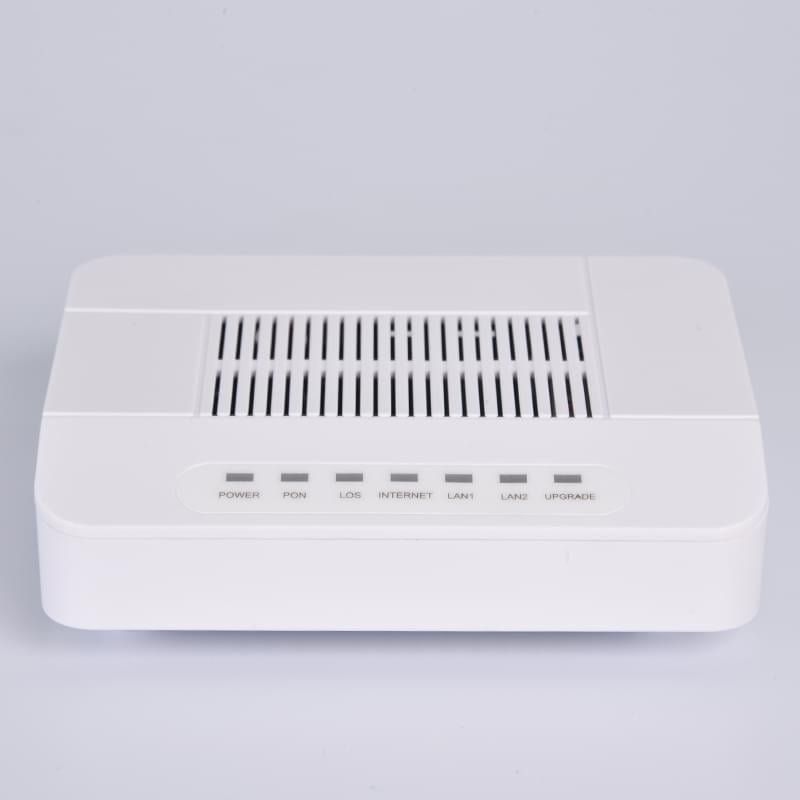

| Indicator light | POWER/PON/LOS/INTERNET/LAN1/LAN2/UPGRADE |
| Button | Power switch Button, Reset Button, |
| Weight | 150g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，0.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | EPON-ONU-PX20+ |
| Working wavelength | up 1310nm，down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power sensitivity | -27dBm |
| Transmission distance | 0～20km |
| Transmission rate | Uplink 1.244Gbps；downlink 1.244Gbps |
| Ethernet interface | |
| Interface type | RJ45 |
| Interface parameters | 2*10/100Mbps auto adaptive Ethernet interfaces |
