1GE+1VOIP+2.4G WIFI+CATV(external antennas)
♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP
♦ Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
♦ Support CATV interface for Video Service

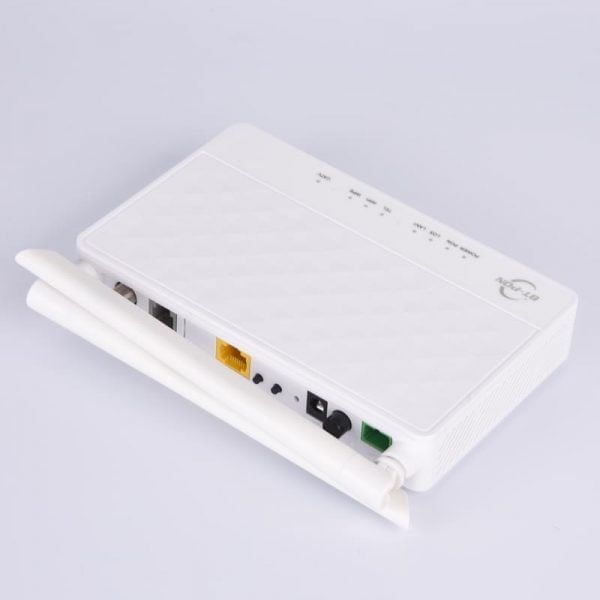

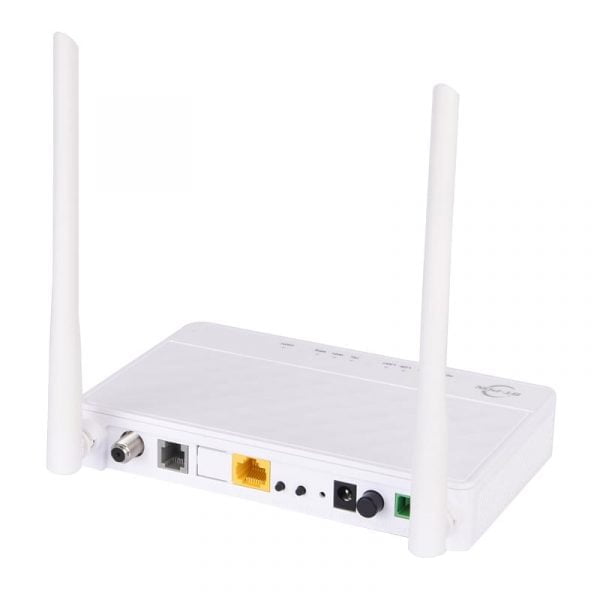

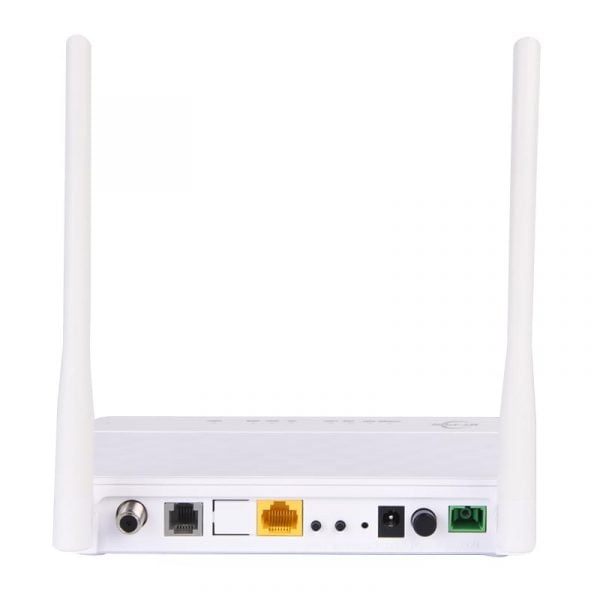

BT-215XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
Bt-215xr have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.
Hardware Specifications | |
---|---|
Size(L*W*H) | 168mm (L) *130mm (W) *28mm (H) |
Optical signal access | 1*GPON/EPON |
User interface | 1GE+VOIP+2.4G WLAN +CATV |
Indicator light | POWER、PON、LOS、LAN1、TEL、WIFI、WPS 、CATV |
Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
Weight | 230g |
Power adapter input | 100V~240V AC,50Hz~60Hz |
PowerSupply requirement | 12V DC,1.5A |
Power consumption | <10w |
Working temperature | -10°C ~ +45°C |
Environment humidity | 5% ~ 95% (Non-condensing) |
PON Interface | |
Module type | Class B+ SC/APC |
Working wavelength | up 1310nm,down 1490nm |
TX Optical power value | 0.5~4dbm |
RX Optical power sensitivity | -28dBm |
Transmission distance | 0~20km |
Transmission rate | GPON:Up 1.244Gbps;down 2.488Gbps |
EPON:Up 1.244Gbps;down 1.244Gbps | |
Ethernet interface | |
Interface type | 1* RJ45 |
Interface parameters | 1*10/100/1000Mbps |
Wireless | |
Working mode | IEEE 802.11 b/g/n |
Antenna pattern | External 2T2R External antenna |
Antenna gain | 5dBi |
Wireless bandwidth | Support 20MHz/40MHz |
Interface rate | Maximum rate 300Mbps |
SSID | Up to 4 SSID broadcasts are supported |
POTS Interface | |
Interface type | 1* RJ11 |
Voice agreement | SIP |
Codecs | G.711/G.723/G.726/G.729 |
Integrated circuit protocol | Gr-909 protocol is applicable |
CATV Interface | |
Optical receiving wavelength | 1550±10nm |
Optical reflection loss | ≥45dBm |
RF, WDM, optical power | +2~-15dBm |
RF frequency range | 47~1000MHz, RF output impedance: 75Ω |
RF output level | 78dBuV |
AGC range | 0~-12dBm |
MER | ≥32dB@-15dBm |
