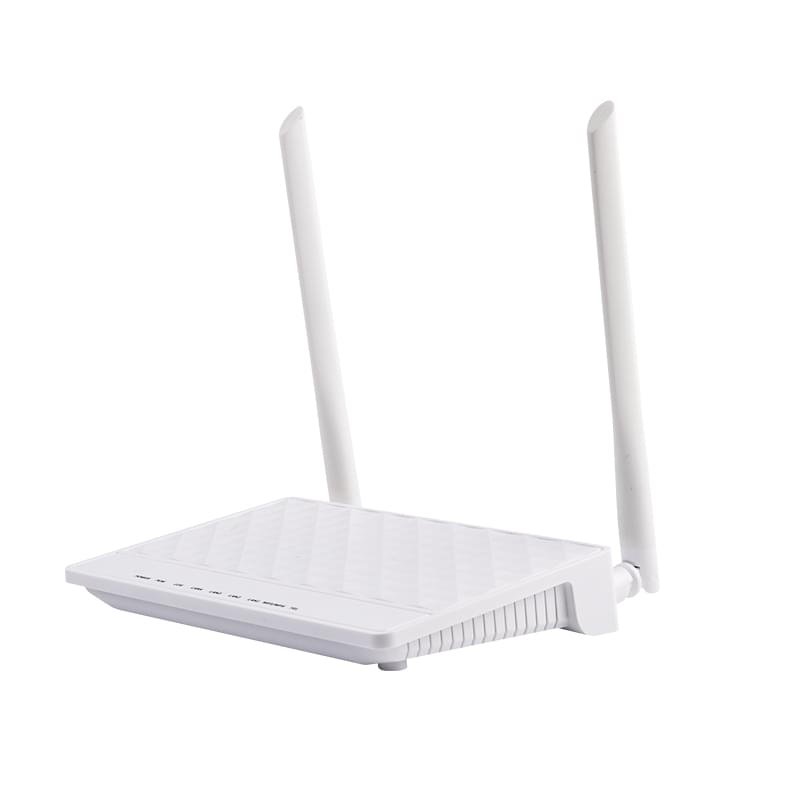

1GE 3FE VOIP WIFI xPON ONU BT-341XR
1GE 3FE VOIP 2.4G WIFI(external antennas）
♦ Support EPON/GPON mode and switch mode automatically
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Support PPPoE/ Staic IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings
♦ Chipest :Realtek
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
BT-341XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators. BT-341XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
Features:
Support EPON/GPON mode and switch mode automatically
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Support PPPoE/ Static IP/ DHCP
Bi-directional FEC
Support IPv4, IPv6 and IPv4/IPv6
Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide Maximum rate 300Mbps 2.4GHz Wireless

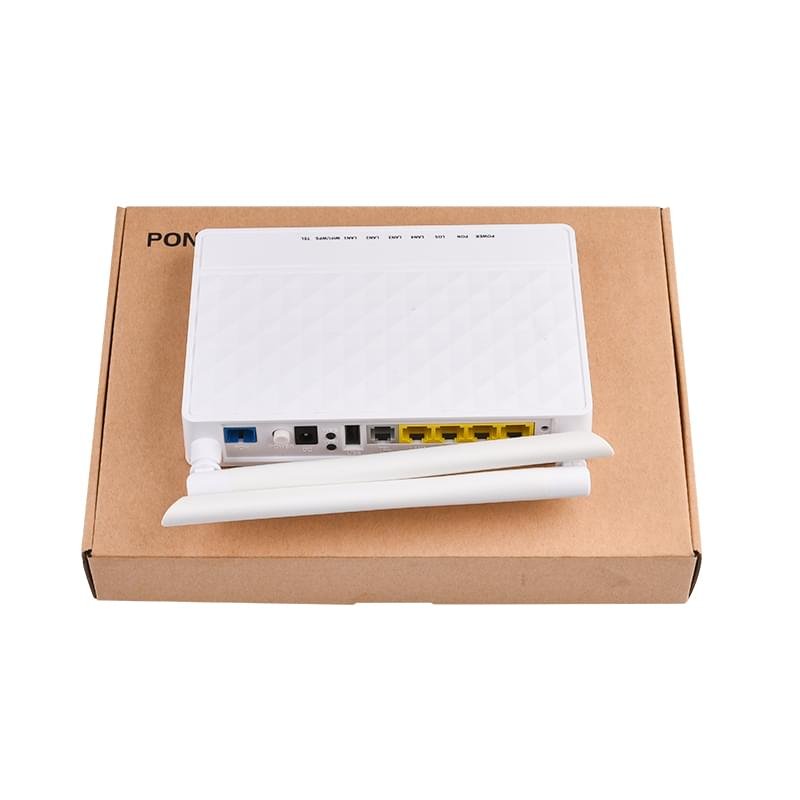

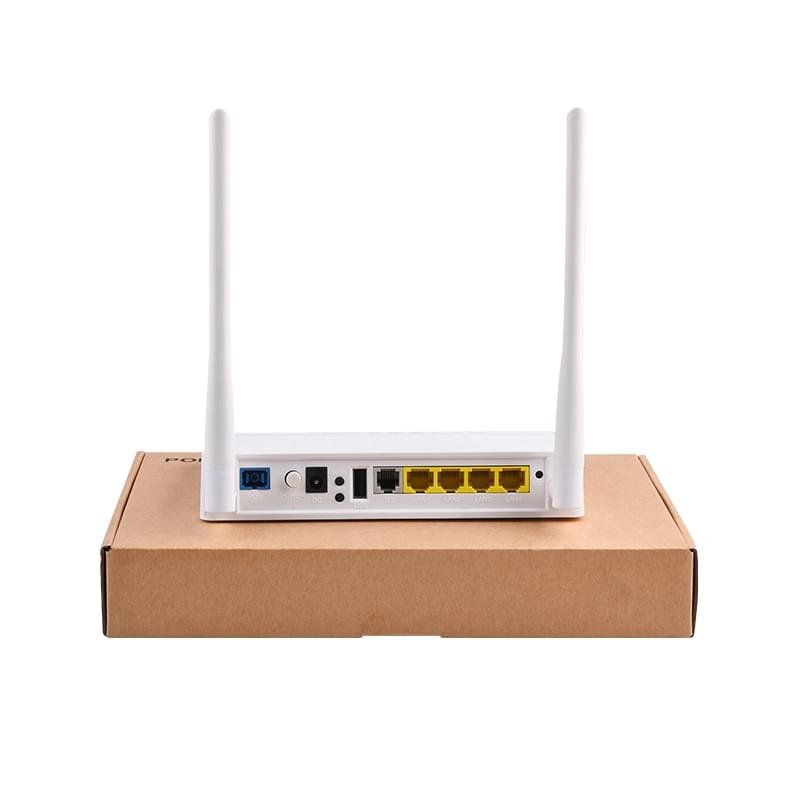

GPON ONT Router 1GE 3FE VOIP WIFI xPON ONU BT-341XR
| Size | 192mm*148mm*35mm |
|---|---|
| Optical signal access | 1*GPON/EPON |
| User interface | 1GE+3FE+2.4G WLAN+1USB |
| Indicator light | POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/USB/2.4G/WPS |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 250g |
| Power adapter input | 100V～240V AC，50Hz～60Hz |
| PowerSupply requirement | 12V DC，1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-conidensing) |
| Ethernet Interface | |
| Interface type | 4* RJ45 |
| Interface parameters | 1*10/100/1000Mbps and 3*10/100Mbps |
| PON Interface | |
| Module type | SC/APC |
| Working wavelength | up 1310nm，down 1490nm |
| TX Optical power value | 0.5～4dbm |
| RX Optical power sensitivity | -28dBm |
| Transmission distance | 0～20km |
| Transmission rate | GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps |
| Wireless | |
| Working mode | IEEE 802.11 b/g/n |
| Antenna pattern | External 2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz |
| Interface rate | 2.4GMaximum rate 300Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
